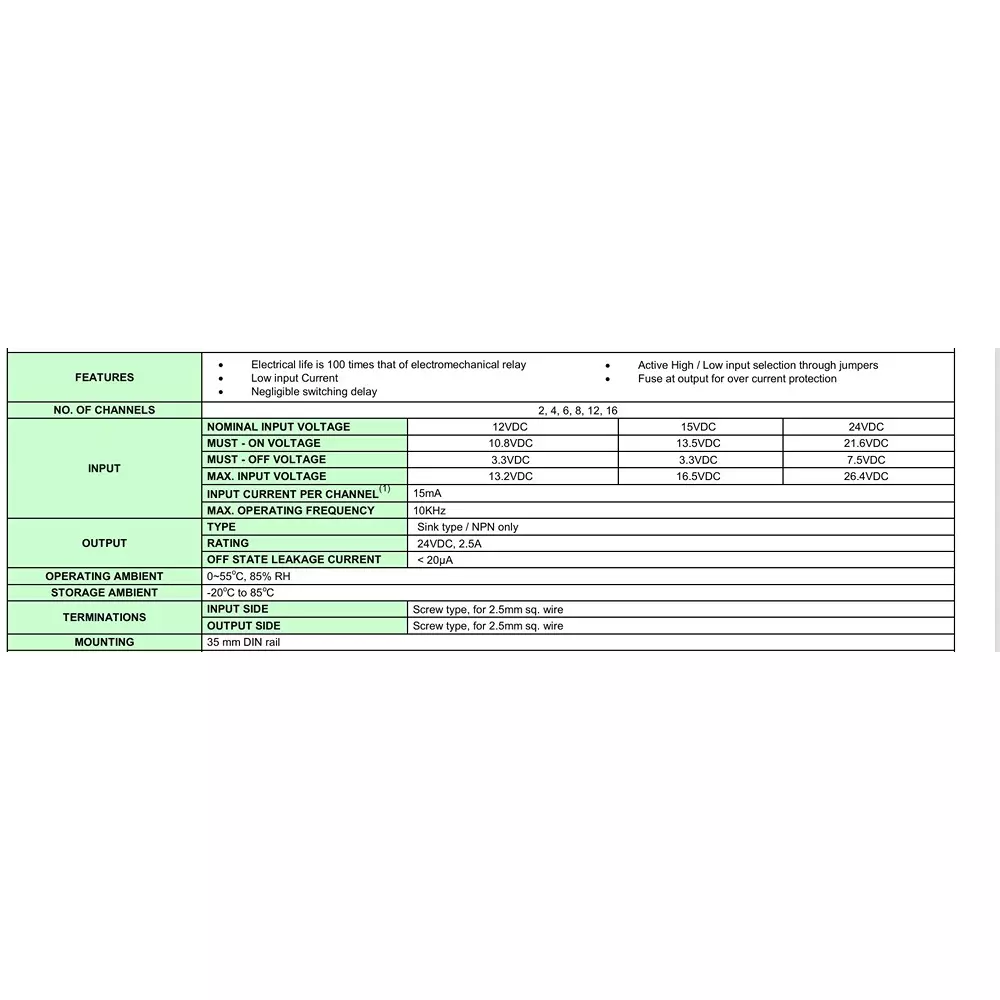

| Features | Electrical life is 100 times that of electromechanical relay, Low input Current, Negligible switching delay. |
| Frequency | 50/60 Hz |
| Model No | AS773-12V-24V |
| Type of Product | Solid State Interface Module With NPN Output |
Features |
Electrical life is 100 times that of electromechanical relay, Low input Current, Negligible switching delay. |
Frequency |
50/60 Hz |
Model No |
AS773-12V-24V |
Type of Product |
Solid State Interface Module With NPN Output |
Country of Origin |
India |
Application |
Industrial Control System |
Coil Voltage |
24 V |
Mounting Type |
35 mm DIN rail |
Name of Manufacturer/Packer/Importer |
M/s Anand Syndicats |
No. of Channels |
4 |
Coil Termination |
Screw type, for 2.5 mm sq. wire |
Contact Termination |
Screw type, for 2.5 mm sq. wire |
Input Voltage (AC/DC) |
12V |
Input Current |
15 mA |
Output Current |
2.5 Amp |
Output Voltage |
24 V DC |
