Ships within 60 days
View
View
View
View
| Response Time | Max. 1.5ms |
| Material | Case: Polycarbonate+acrylonitrile butadiene styrene, LED indicator: Polycarbonate, sensing part: Polymethyl methacrylate |

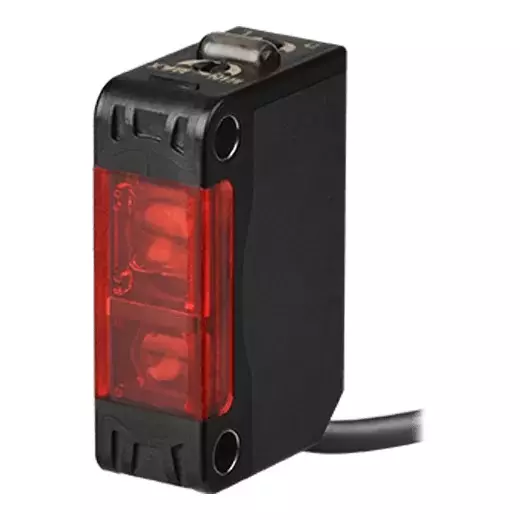

| Type of Product | Photoelectric Sensor |
| Weight | Approx. 105g(approx. 50g) |
Response Time |
Max. 1.5ms |
Material |
Case: Polycarbonate+acrylonitrile butadiene styrene, LED indicator: Polycarbonate, sensing part: Polymethyl methacrylate |
Type of Product |
Photoelectric Sensor |
Weight |
Approx. 105g(approx. 50g) |
Sensing Distance |
10 to 100mm |
Protection Structure |
IP65(IEC standard) |
Light Source |
Red LED(660nm) |
Sensing Target |
Opaque |
Sensing Type |
BGS reflective type |
Operation Mode |
Light ON/Dark ON(set by switch) |
Current Consumption |
mAx. 30 mA |
Accessories |
Adjustment screwdriver, bracket A, M3 bolts: 2, M3 nuts: 2 |
Control Output |
NPN open collector |
Connection Type |
Cable Type(Ø3.5, 2m) |
Environment Ambient Humidity |
35 to 85% RH, Storage: 35 to 85% RH |
Model No |
BJP100-BDT |
Country of Origin |
South Korea |
Hysteresis Distance |
Max. 10% of setting distance |
Environment Ambient Temperature |
-25 to 55℃, Storage: -40 to 70℃ |
Power Voltage |
12-24VDC ±10%(ripple P-P: max. 10%) |
Sensitivity Adjustments |
Sensitivity adjuster |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Environment Ambient Illumination |
Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
Available Setting Distance |
20 to 100 mm |
