Model No
View
View
View
View
| Output | NPN |
| Series | E3Z Series |

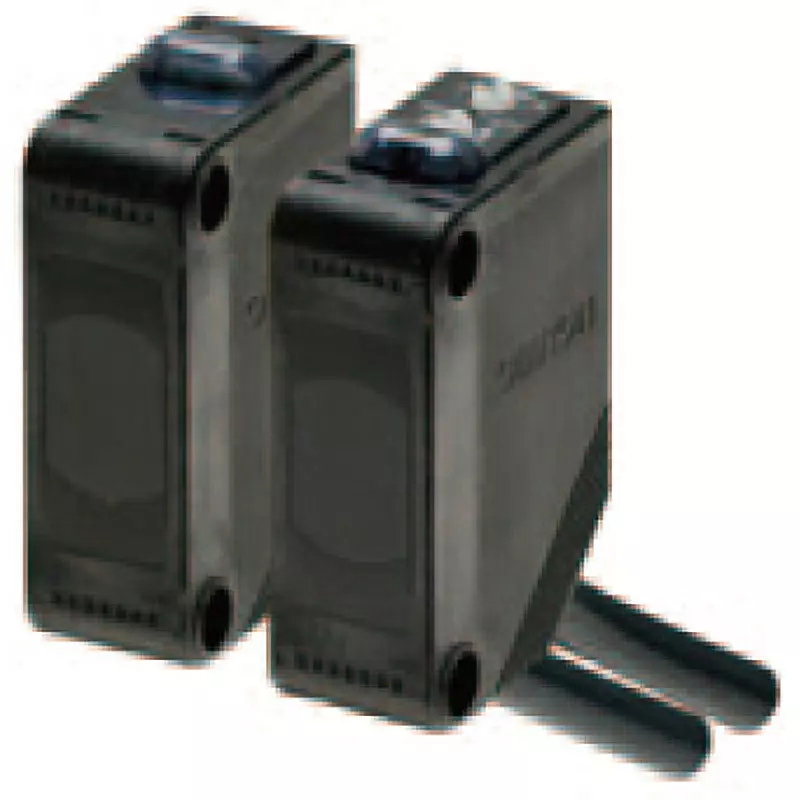

| Type of Product | Photoelectric Sensor with Built-in Amplifier |
| Power Supply Voltage | DC12-24 ± 10% Ripple (pp) 10% or less |
Output |
NPN |
Series |
E3Z Series |
Type of Product |
Photoelectric Sensor with Built-in Amplifier |
Power Supply Voltage |
DC12-24 ± 10% Ripple (pp) 10% or less |
Light Source |
Infrared light emitting diode |
Protection Class |
IEC standard IP67 (excluding cord/connector) |
Connection Type |
M12 Standard Connector Relay Type |
Model No |
E3Z-T61K-M1J 0.3M |
Cable Length (m) |
0.3 |
Mass (g) |
Approx. 75 (packed) |
Case Material |
Polybutylene terephthalate |
Detection Target |
Through-beam type (light emitter + light receiver) |
Standard Sensing Object (mm) |
Opaque body with Φ12 or more |
Detection Method |
Transmission Type (Emitter + Receiver) |
Monotaro ID |
39053935 |
Detection Distance (mm) |
15000 |
Applicable Standard |
RoHS compliant |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Withstand Voltage |
AC1000V 50/60 Hz 1min |
Included Components |
Instruction manual Note: Reflector and mounting hardware are sold separately. |
Set Contents |
Floodlight + receiver |
With or Without Indication Lamp |
Included |
Detection Distance |
15m |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Category |
Photoelectric Sensors |
