| Type | Groove Type (L Type) |
| Output | NPN |
| Material | Emitter/receiver: Polycarbonate (PC) |
| Protection Circuit | Load Short Protection |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Groove Type (L Type) |
Output |
NPN |
Material |
Emitter/receiver: Polycarbonate (PC) |
Protection Circuit |
Load Short Protection |

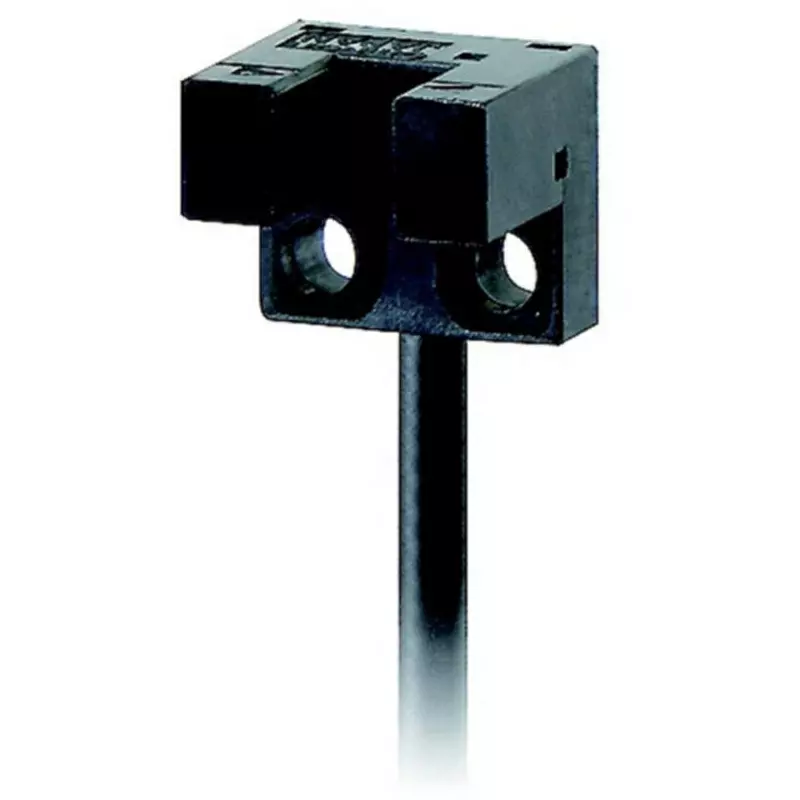

Type of Product |
Photo / Microsensor Ultra Small Cords |
Shock Resistance |
500 m/s² X, Y, Z directions: 3 times |
Power Supply Voltage |
DC5~24 ± 10% Ripple (pp) 10% or less |
Protection Class |
IEC60529 standard IP50 |
Control Output |
Load power supply voltage: DC 5 to 24 V, Load current: 50 mA or less, Off current: 0.5 mA or less, Residual voltage: 0.7 V or less (at load current of 50 mA), 0.4 V or less (at load current of 5 mA) |
Connection Type |
Standard cord pull-out type |
Model No |
EE-SX951-W3M |
Cable Length (m) |
3 |
Mass (g) |
Approx. 15 (packed) |
Case Material |
Polybutylene terephthalate (PBT) |
Standard Sensing Object (mm) |
Opaque body of 1.8 × 0.8 or more |
Cover Material |
Polybutylene terephthalate (PBT) |
Detection Method |
Transmission type (groove type) |
Current Consumption (mA) |
15 or less |
Ambient Humidity (% RH) |
Operating: 5 to 85 Storage: 5 to 95 (no frost or condensation) |
Monotaro ID |
66482587 |
Detection Distance (mm) |
5 (groove width) |
Country of Origin |
JAPAN |
Vibration Resistance (Destruction) |
10 to 2000Hz (peak acceleration 150m/s2 ) Single amplitude: 0.75mm X, Y, Z directions each 2.5h (15min cycle, 10 cycles) |
Detection Distance |
Groove width: 5 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
