| Response Time | Operation / Reset: 1 ms or less |
| Output | NPN |
| Series | E3Z Series |
| Type of Product | Photoelectric Sensor with Built-in Amplifier |
Response Time |
Operation / Reset: 1 ms or less |
Output |
NPN |
Series |
E3Z Series |
Type of Product |
Photoelectric Sensor with Built-in Amplifier |
Weight |
Approx. 120 g (Packed) |
Standard sensing Object |
Opaque Body with Φ12 mm or more |
Power Supply Voltage |
DC12-24V ± 10%, Ripple (PP) 10% or less |
Protection Class |
IEC standard IP67 |
Cable Length |
2 m |
Current Consumption |
35 mA or less (Emitter 15 mA or less, Receiver 20 mA or less) |
Control Output |
Load Power Supply Voltage: DC26.4V or less, Open Collector Output Type (NPN output) ON at light ON / ON at light blocking (Switch switching type) |
Connection Type |
Cord Drawer Type |
Load Current |
100mA or less (residual voltage load current less than 10mA: 1V or less, load current 10 to 100mA: 2V or less) |
Model No |
E3Z-T61A 2M |
Case Material |
Polybutylene Terephthalate |
Detection Target |
Through-beam type (light emitter + light receiver) |
Detection Method |
Transmission Type (Emitter + Receiver) |
Monotaro ID |
8585297 |
Head Shape |
Square |
Light Source (Projection Wavelength) |
Infrared light emitting diode (870nm) |
Applicable Standard |
RoHS compliant / CE |
Country of Origin |
Indonesia |
Import Country |
Direct Import from Japan |
Included Components |
Instruction Manual |
Set Contents |

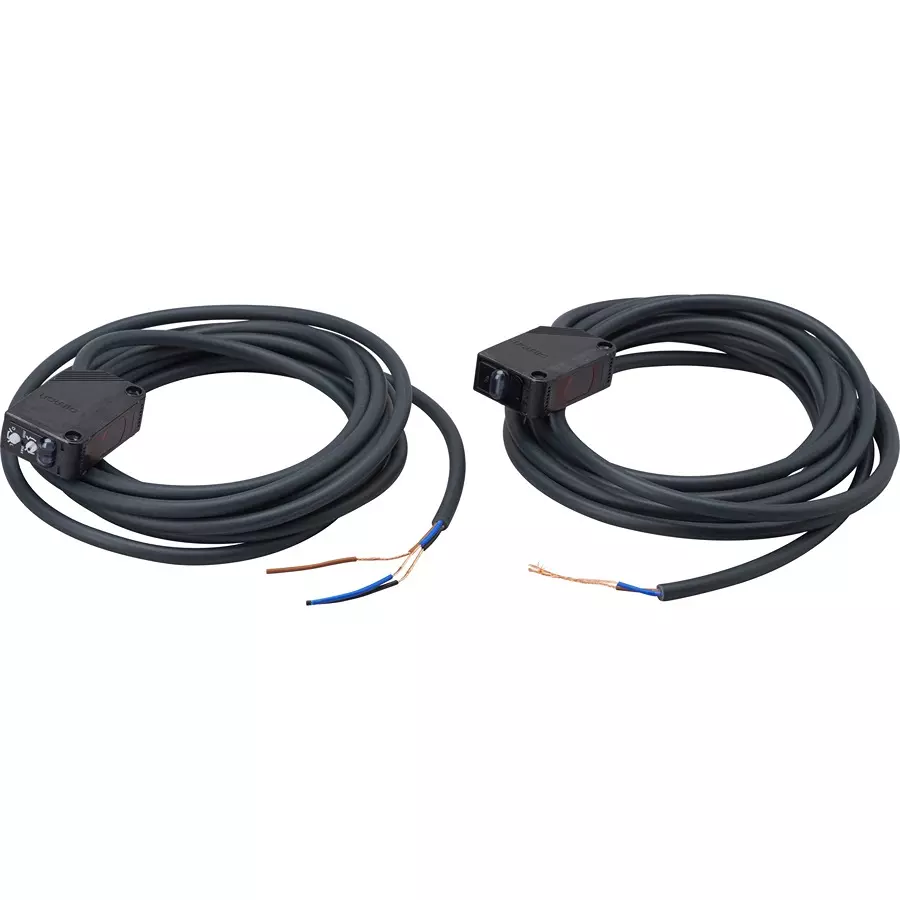

Floodlight + Receiver |
With or Without Indication Lamp |
With Indication Lamp |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
