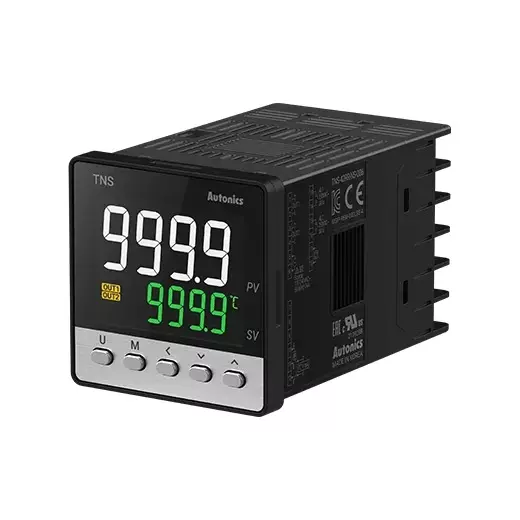

Autonics Temperature Controller V1-100-240 VAC, TNS-42CR-RS-006

Name: Autonics Temperature Controller V1-100-240 VAC, TNS-42CR-RS-006
Brand: Autonics
SKU: IND.PID.440227828
Price: 15339 INR
Availability: InStock

Visit the Autonics Store

EMI starts at ₹1363/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Power Consumption	Max. 8VA
Type of Product	Temperature Controller
Model No	TNS-42CR-RS-006
Weight	128 g

More Autonics PID Temperature Controller products More PID Temperature Controller products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

description

Power Consumption	Max. 8VA
Type of Product	Temperature Controller
Model No	TNS-42CR-RS-006
Weight	128 g
Hysteresis	• Thermocouple, RTD: 1 to 100 (0.1 to 100.0) ℃/℉ • Analog: 1 to 100 digit
Ambient Temperature	-10 to 50 ℃, storage: -20 to 60 ℃ (no freezing or condensation)
Protection Structure	IP65 (Front panel, IEC standards)
Ambient Humidity	35 to 85%RH
Sampling Cycle	50 / 100 / 250 ms (parameter)
Display Method	11 segment, LCD type (operating value display part: 7 segment)
Insulation Resistance	≥ 100 MΩ (500 VDC Megger)
Country of Origin	South Korea
Control	ON/OFF, P, PI, PD, PID
Insulation Type	Double insulation or reinforced insulation (mark: , dielectric strength between the measuring input part and the power part: 3 kV)
Name of Manufacturer/Packer/Importer	Teknocrats Control System (I) Pvt Ltd.
Power Voltage	100-240VAC~ 50/60Hz
Control Type Zone Pid	4 zones
Vibration	0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
Loader Port	Top side
Control Type Arw	50 to 200 %
Option Output Alarm	250VAC~ 3A 1a
Accessories	Bracket
Control Output Current	DC 0 - 20 mA or DC 4 - 20 mA (parameter), Load resistance: ≤ 500 Ω
Option Output Comm.	RS485
Noise Immunity	±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase
Memory protection features	≈ 10 years (non-volatile semiconductor memory type)
Option Input Ct Input	• 0.0-50.0 A (primary current measurement range) • CT ratio: 1/1
Control Type Group Pid	≤ 8 group
Control Type Multi Sv	≤ 4 SV
Dielectric Strength	Between primary terminal and case: 3,000 VAC~ 50/60 Hz for 1 min
Relay Life Cycle Electrical	• OUT1/2: ≥ 200,000 operations • AL1/2/3/4/5/6: ≥ 100,000 operations
Relay Life Cycle Mechanical	• OUT1/2: ≥ 5,000,000 operations • AL1/2/3/4/5/6: ≥ 20,000,000 operations
Control Output Relay	250VAC~ 3A 1a
