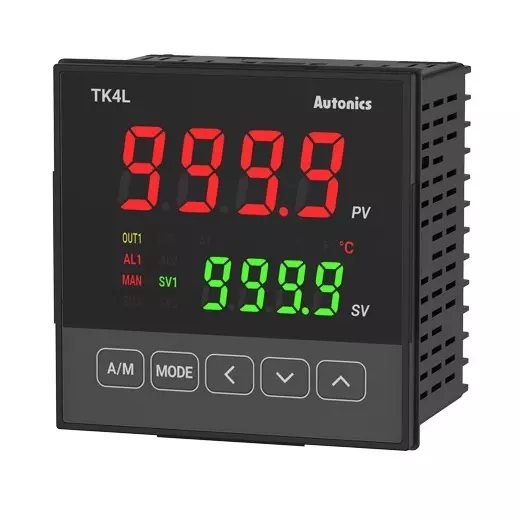

Autonics Temperature Controller 4-Digit 7-Segment LED 50 ms Sampling Cycle, TK4L-24SN

Name: Autonics Temperature Controller 4-Digit 7-Segment LED 50 ms Sampling Cycle, TK4L-24SN
Brand: Autonics
SKU: IND.PID.540226686
Price: 9557 INR
Availability: InStock

Visit the Autonics Store

EMI starts at ₹849/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹4,000

View

Features

Type of Product	Temperature Controller
Model No	TK4L-24SN
Weight	Approx. 294g(approx. 198g)
Integral Time	0 to 9999 sec

More Autonics PID Temperature Controller products More PID Temperature Controller products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

description

Type of Product	Temperature Controller
Model No	TK4L-24SN
Weight	Approx. 294g(approx. 198g)
Integral Time	0 to 9999 sec
Derivative Time	0 to 9999 sec
Proportional Band	0.1 to 999.9℃/℉(0.1 to 999.9%)
Protection Structure	IP65(front panel)
Sampling Cycle	50 ms
Option Output	Alarm 1/2
Display Method	4-Digit 7-Segment LED
Manual Reset	0.0 to 100.0%
Input Specifications	Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel II RTD: DPt100Ω, DPt50Ω, JPt100Ω, Cu100Ω, Cu50Ω, Nikel 120Ω Analog: 0-100mV, 0-5V, 1-5V, 0-10V 0-20mA, 4-20mA
Control Method	ON/OFF, P, PI, PD, PID
Environment Ambient Humidity	35 to 85% RH, Storage: 35 to 85% RH
Control Period	Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec
Country of Origin	South Korea
Insulation Type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 2kV)
Environment Ambient Temperature	-10 to 50℃, Storage: -20 to 60℃
Display Accuracy Thermocouple	•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
Display Accuracy CT Input	±5% F.S. ±1-digit
Display Accuracy RTD	•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit
Display Accuracy Analog	•At room temperature(23℃±5℃): ±0.3% F.S. ±1-digit •Out of range of room temperature: ±0.5℃% F.S. ±1-digit
Option Input	CT, Digital(DI-1/2)
Name of Manufacturer/Packer/Importer	Teknocrats Control System (I) Pvt Ltd.
Power Voltage	100-240VAC~ 50/60Hz
Hysteresis (Adjustable Sensitivity)	RTD/Thermocouples: 1 to 100℃/℉(0.1 to 100.0℃/℉) variable Analog: 1 to 100-digit
