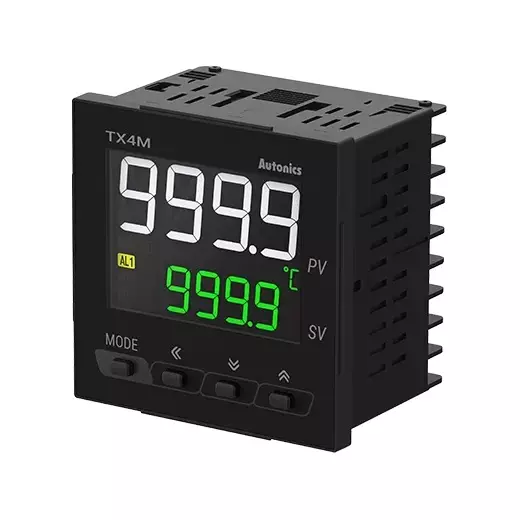

| Type of Product | Temperature Controller |
| Model No | TX4M-24C |
| Weight | Approx. 233g(approx. 143g) |
| Control Output | Current (DC0/4-20mA) or SSR drive (13VDC )[ON/OFF] |
Type of Product |
Temperature Controller |
Model No |
TX4M-24C |
Weight |
Approx. 233g(approx. 143g) |
Control Output |
Current (DC0/4-20mA) or SSR drive (13VDC )[ON/OFF] |
Integral Time |
0 to 9999 sec |
Derivative Time |
0 to 9999 sec |
Proportional Band |
0.1 to 999.9℃/℉ |
Protection Structure |
IP50(front panel) |
Sampling Cycle |
50ms |
Option Output |
Alarm 1/2 |
Display Method |
4-digit 11-segment LCD |
Manual Reset |
0.0 to 100.0% |
Input Specifications |
Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100Ω, Cu50Ω |
Control Method |
ON/OFF, P, PI, PD, PID |
Environment Ambient Humidity |
35 to 85% RH, Storage: 35 to 85% RH |
Control Period |
0.5 to 120.0 sec |
Country of Origin |
South Korea |
Insulation Type |
Double insulation (mark: , dielectric strength between primary circuit and secondary circuit: 3kV) |
Environment Ambient Temperature |
-10 to 50℃, Storage: -20 to 60℃ |
Display Accuracy Thermocouple |
•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
Display Accuracy RTD |
•At room temperature(23℃±5℃):(PV ±0.3% or ±1℃, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2℃, select the higher one) ±1-digit |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Power Voltage |
100-240VAC~ 50/60Hz |
Hysteresis (Adjustable Sensitivity) |
1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
