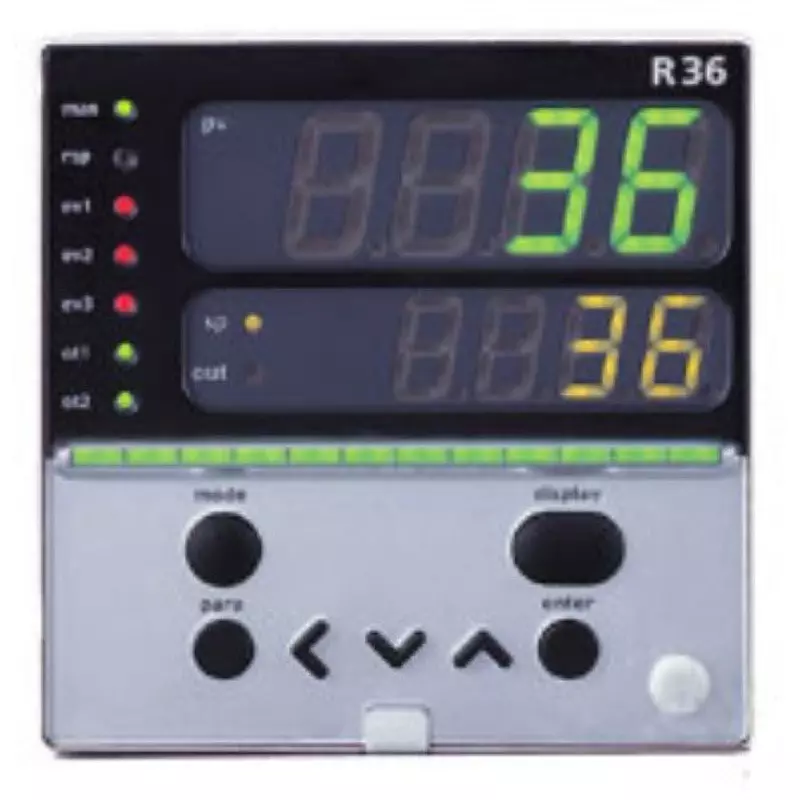

Azbil Digital Indicating Controller (Rating) AC100-240 V (50/60 Hz) Maximum 12 VA, R36TC0UA5000

Name: Azbil Digital Indicating Controller (Rating) AC100-240 V (50/60 Hz) Maximum 12 VA, R36TC0UA5000
Brand: Azbil
SKU: IND.PID.243618997
Price: 224199 INR
Availability: InStock

Visit the Azbil Store

EMI starts at ₹19920/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Power Consumption	Maximum 12 VA
Type of Product	Digital Indicating Controller
Input Type	Full multi-range of thermocouples, resistance thermometers, DC current, and DC voltage
Display Type	4-digit digital, 7-digit LED display (PV: upper green, SP lower orange)

More Azbil PID Temperature Controller products More PID Temperature Controller products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Power Consumption	Maximum 12 VA
Type of Product	Digital Indicating Controller
Input Type	Full multi-range of thermocouples, resistance thermometers, DC current, and DC voltage
Display Type	4-digit digital, 7-digit LED display (PV: upper green, SP lower orange)
Model No	R36TC0UA5000
Control Output	First: Current output, Second: None
Indication Accuracy	±0.1FS ±1 digit, negative range of thermocouple is ±0.2%FS ±1 digit (at ambient temperature 23±2°C)
Input	Universal
Sampling Cycle	0.1s
Monotaro ID	63141114
No. Of Output	2 to 3 points (depending on the model)
Mass (g)	Approx. 300 (including mounting fixtures)
Number of Input Points	External switch: Maximum 4 points, Current transformer: 2 points (optional)
RoHS Directive	Correspondence
Communication Protocol	RS-485
Country of Origin	Japan
Control	No additional processing/Control action: ON/OF control, time proportional PID, current proportional PID/Number of PID groups: Maximum 8 groups/PID auto-tuning: Automatic PID setting using limit cycle method (select from standard control characteristics, dimension control characteristics that quickly respond to disturbances, and control characteristics with minimal up/down movement of PV)
Import Country	Direct Import from Japan
Name of Manufacturer/Packer/Importer	Azbil Corporation
Power Supply Voltage (V)	(Rating) AC100-240 V (50/60 Hz)
Options	2-point event relay output (independent contact) + auxiliary output (current output)
Events	PV upper limit, PV lower limit, PV upper and lower limits, deviation upper limit, deviation lower limit, deviation upper and lower limits, etc.
