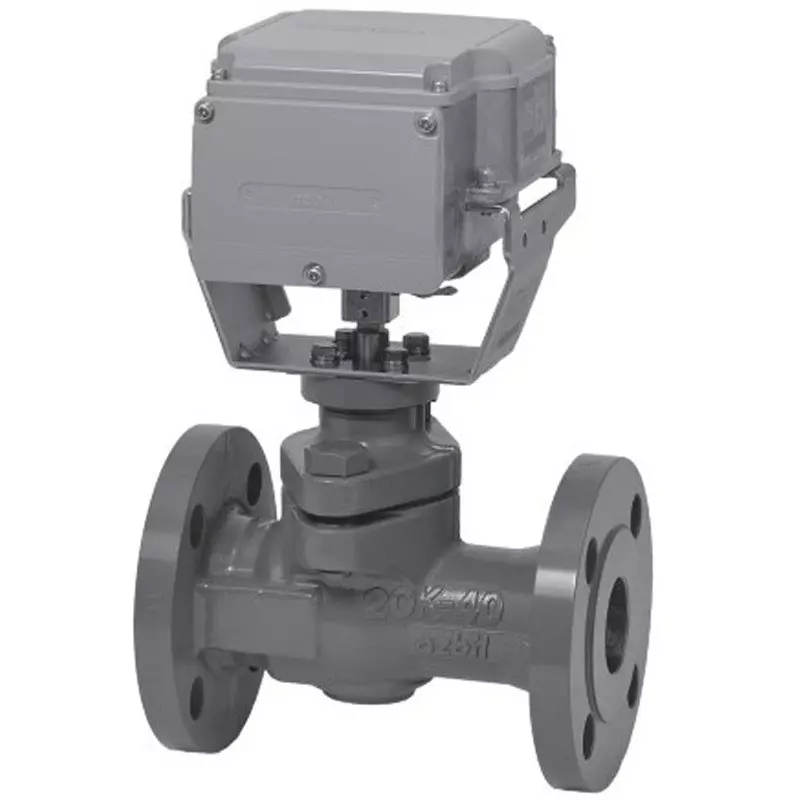

| Type of Product | Electric Two-Way Valve Actival |
| Model No | VY514AJ0022 |
| Series | Two-Way Valve, Flange Connection Type Vy5100 |
| Monotaro ID | 63151639 |
Type of Product |
Electric Two-Way Valve Actival |
Model No |
VY514AJ0022 |
Series |
Two-Way Valve, Flange Connection Type Vy5100 |
Monotaro ID |
63151639 |
Mass (g) |
660 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Control |
DC 2 to 1O V Input, With DC 2 to 1O V Feedback Signal |
Import Country |
Direct Import from Japan |
Standard |
Jis 10K-Fc200 200℃ [For Steam] |
Name of Manufacturer/Packer/Importer |
Azbil Corporation |
Power Consumption (VA) |
8 |
Power Supply Voltage (V) |
AC 24±15% 50/60Hz |
Specifications |
Valve Size 25 Amp, Cv Value 16 |
Output Voltage (V) |
DC 2 (At 0% Opening) to DC 10 (At 100% Opening) |
Structure |
Iec Ip54 (Dust And Splash Proof) With Standard Torque Type Terminal Block |
Operating Time |
63(50Hz)/53(60Hz) Sat 5 |
Load Resistance |
10Kq Or More (Maximum Output Current 1Ma) |
Rated Pressure |
Jis10K (Maximum Operating Pressure 1.0 mPA) |
