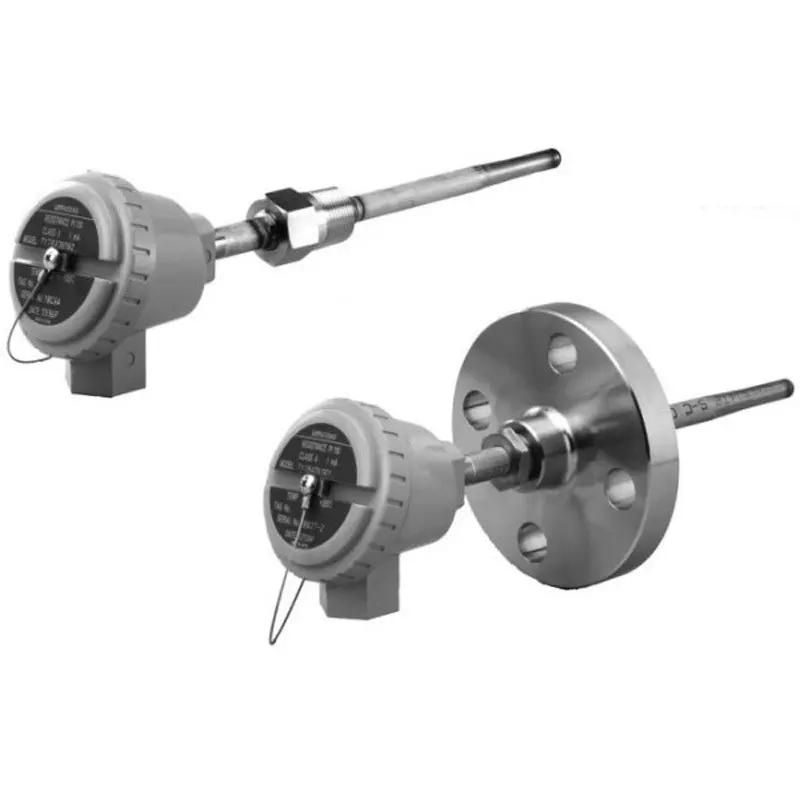

| Type of Product | Temperature Detector |
| Panel Size | Φ79 mm |
| Model No | TY7831J2020 |
| Indication Accuracy | ±(0.15+0.002|T|)℃ (T Measurement Temperature) |
Type of Product |
Temperature Detector |
Panel Size |
Φ79 mm |
Model No |
TY7831J2020 |
Indication Accuracy |
±(0.15+0.002|T|)℃ (T Measurement Temperature) |
Material |
Protective Tube: Sus316L |
Series |
Pipe Temperature Sensor Ty783 |
Monotaro ID |
63154536 |
RoHS Directive |
Correspondence |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Withstand Voltage |
Leakage Of 1 mA Or Less At AC 500 V1Min |
Name of Manufacturer/Packer/Importer |
Azbil Corporation |
Specifications |
Double Element |
Operation Ambient Temperature (°C) |
-50 to +200℃ |
Additional Functions |
Wiring: 6 Wires |
Operating Time |
Approx. 50 (In Stirred Water) |
Rated Pressure |
Screw Connection: 1.47 mPA, Flange Connection: Jis2Ok |
Connecting Terminal |
Jis20K 20A Rf Welded Pipe (Insertion Length 150-400Mm) Sus304, 316L Only |
Current (mA) |
1 |
Box Material |
Aluminum Alloy |
Insertion Length |
200 mm |
Application Area |
Pipe connection, 4 m/s or less (when mounted opposite each other). The applicable flow velocity varies depending on the mounting method and insertion length, so please refer to the applicable flow velocity and insertion length by mounting condition on the spec sheet. |
Dimension D2 (mm) |
12.5 |
Dimension D1 (mm) |
17.3 |
