| Relative Humidity | Up to 95% RH (non-condensing) |

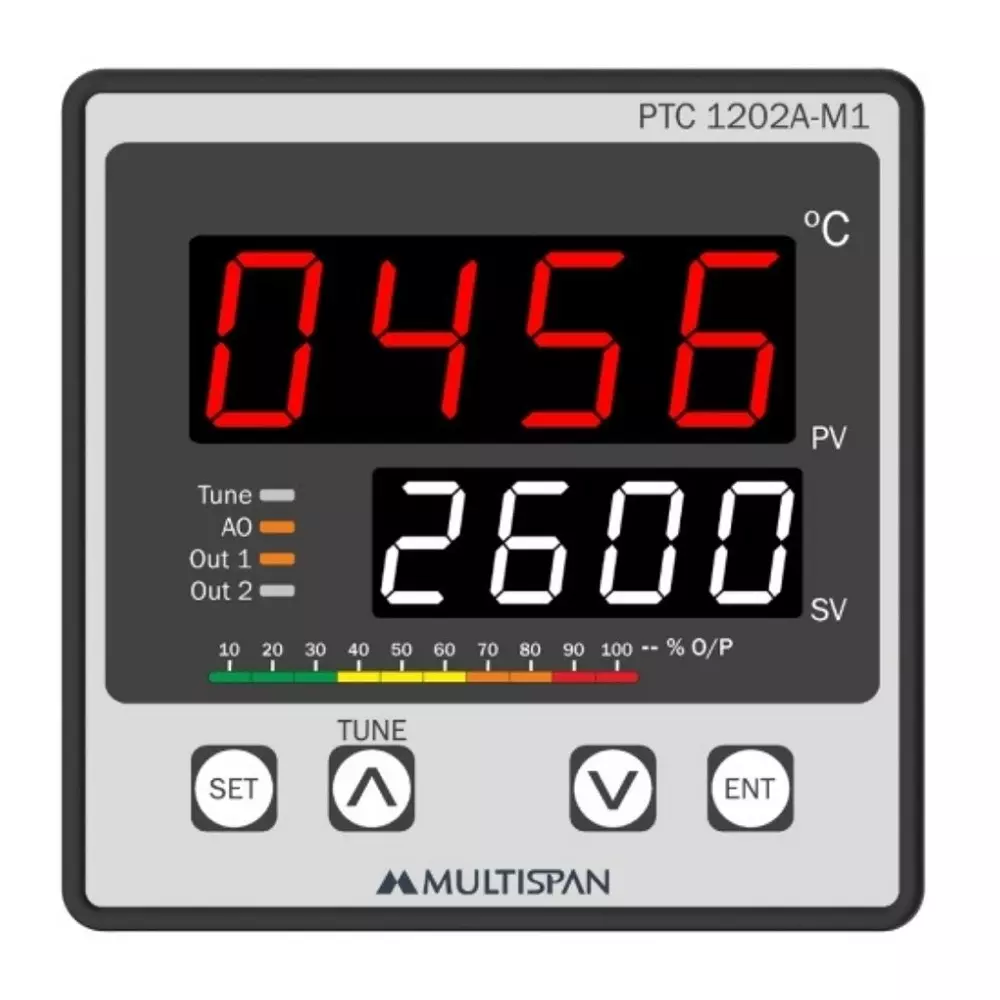

| Type of Product | Process & Temperature Controller |
| Display Type | 4-Digit Dual Red/White LED Display |
| Model No | PTC-1202A-M1 |
Relative Humidity |
Up to 95% RH (non-condensing) |
Type of Product |
Process & Temperature Controller |
Display Type |
4-Digit Dual Red/White LED Display |
Model No |
PTC-1202A-M1 |
Operating Temperature |
0°C to 55°C |
Application |
Industrial Heating Systems, Plastic Extrusion Machines, Packaging Equipment, Food Processing Units, Laboratory Instruments |
Supply Voltage |
100-270 V AC |
Frequency |
50-60 Hz |
Mounting Type |
Panel Mount |
Input |
J/IVPT-100/4-20mA/0-20mA/0-10V DC |
Size (H X W X D) |
96x96x54 mm |
Control Method |
Heating: PID Control with Auto-Tuning, ON-OFF Control | Cooling: ON-OFF Control, BL.TP (Blower Time Proportional) | Alarm: High /Low /Absolute Low/ Inband /Absolute Outband/Outband/End Alarm |
Relay Rating |
5 A, 230 V AC / 30 V DC |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Dhruv Enterprise |
Power Consumption (VA) |
Approx. 7 VA @230 V AC Max. |
Relay Type |
1 C/O, (NO-C-NC) |
