| Sensor | Thermocouple, platinum resistance thermometer, analog input (voltage, current) can be switched |

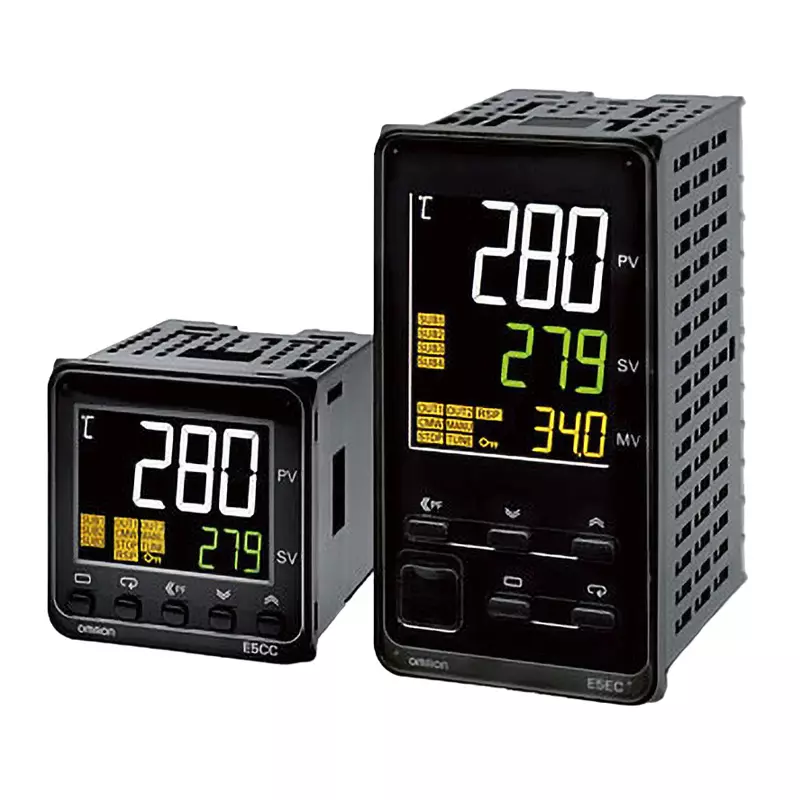

| Type of Product | Digital Temperature Controller |
| Input Type | Thermocouple / resistance temperature detector / sensor / current / voltage |
| Dimension | Front: 48x96 mm |
Sensor |
Thermocouple, platinum resistance thermometer, analog input (voltage, current) can be switched |
Type of Product |
Digital Temperature Controller |
Input Type |
Thermocouple / resistance temperature detector / sensor / current / voltage |
Dimension |
Front: 48x96 mm |
Model No |
E5EC-QX4ASM-009 |
Control Output |
SSR drive voltage |
Sampling Cycle |
(Input) 50ms |
Monotaro ID |
46677407 |
Power Supply Voltage |
AC 100-240 |
Terminal |
M3 |
control output detail |
Voltage output (for SSR drive) |
Length |
60 mm |
Country of Origin |
CHINA |
Control |
ON/OFF control/PID control with auto tuning |
Import Country |
Direct Import from Japan |
Number of Outputs and Type |
4 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
