| Sensor | Thermocouple, platinum resistance thermometer, analog input (voltage, current) can be switched |
| Storage Temperature | -25 to 65℃ (no condensation or freezing) |
| Type of Product | Temperature Controller |
| Input Type | Thermocouple / resistance temperature detector / sensor / current / voltage |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Sensor |
Thermocouple, platinum resistance thermometer, analog input (voltage, current) can be switched |
Storage Temperature |
-25 to 65℃ (no condensation or freezing) |
Type of Product |
Temperature Controller |
Input Type |
Thermocouple / resistance temperature detector / sensor / current / voltage |

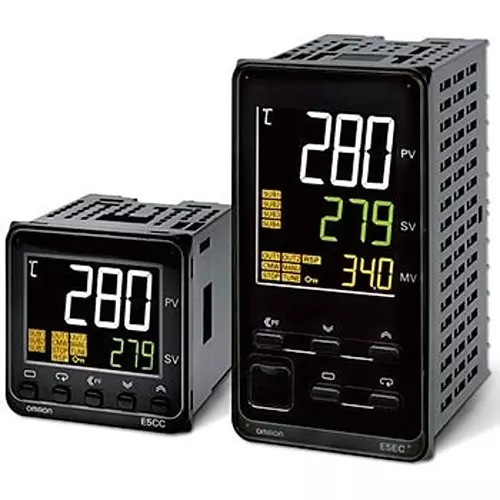

Model No |
E5EC-CC2ASM-013 |
Control Output |
Linear current output |
Dimension (mm) |
Front: 48x96 |
Character Height (mm) |
PV：18, SV：11, MV：7.8 |
Monotaro ID |
46676411 |
Power Supply Voltage |
AC100 to 240(50/60Hz) |
Length (mm) |
60 |
Mass (g) |
Main unit: Approx. 210, Mounting adapter: Approx. 4x2 |
Applicable Standard |
EN 61010-1(IEC 61010-1), RCM |
Shape |
DIN48x96 |
Terminal Shape |
Screw Terminal |
Country of Origin |
Japan |
Control |
ON/OFF or 2 degrees of freedom PID (with auto tuning) |
Import Country |
Direct Import from Japan |
Standard |
[Certification standards] cULus: UL 61010-1/CSA C22.2 No.61010-1, Korea Radio Regulations (Radio Act: KC mark) (some models only), Lloyd's Standards |
Protection Class |
Front: IP66, Rear case: IP20, Terminal part: IP00 |
Operating Temperature Range |
-10 to 55℃ (no condensation or freezing) / 3-year warranty: -10 to 50℃ (no condensation or freezing) when installed as standard |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Specifications |
●Sensor input: Temperature input thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLⅡ<br> Platinum resistance thermometer: Pt100, JPt100<br> Non-contact temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, 140 to 260°C<br> Analog input current input: 4 to 20mA, 0 to 20mA<br> Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V ● Potentiometer input (kΩ): 0.1 to 10 ● [Effect of electromagnetic interference (according to EN 61326-1)] Thermocouple input (R, S, B, C/ W, PLⅡ): (±1% of indicated value or ±10℃, whichever is greater) ±1 digit or less, other thermocouple input: (±1% of indicated value or ±4℃, whichever is greater) ±1 digit or less Platinum resistance thermometer input: (±1% of indicated value or ±2°C, whichever is greater) ±1 digit or less; Analog input: ±1%FS ±1 digit or less; CT input: ±5%FS ±1 digit Remote SP input: ±1%FS ±1 digit or less ●Manual reset value: 0.0 to 100.0% (in 0.1% units) ●Reco mmended fuse: T2A, AC250V Time lag, low breaking capacity ● Installation environment: Overvoltage category II, pollution degree 2 (EN/IEC/UL 61010-1) ● Multi-SP function: Stores up to eight target values (SP0 to SP7), and can be used for event input and key operation , or serial co mmunication can be selected. Configuration tool port:<br> Top: Use the E58-CIFQ2 USB-serial conversion cable to connect to the USB port on the computer. Front: Use the E58-CIFQ2 USB-serial conversion cable + E58-CIFQ2-E conversion cable to connect to the USB port on the computer. Connect with |
Other functions |
Manual output, heating/cooling control, loop break alarm function, SP lamp, alarm function, heater break detection function (including SSR failure), 40% AT, 100% AT, operation amount limit, input digital filter, self-tuning, robust tuning, PV input correction, run/stop, protect, square root calculation function, operation amount change rate limit, simple calculation, temperature status display function, simple program function, input moving average, display brightness setting |
