| Sensor | Thermocouple, Platinum Resistance Thermometer, Analog Input (Voltage, Current) Can Be Switched |

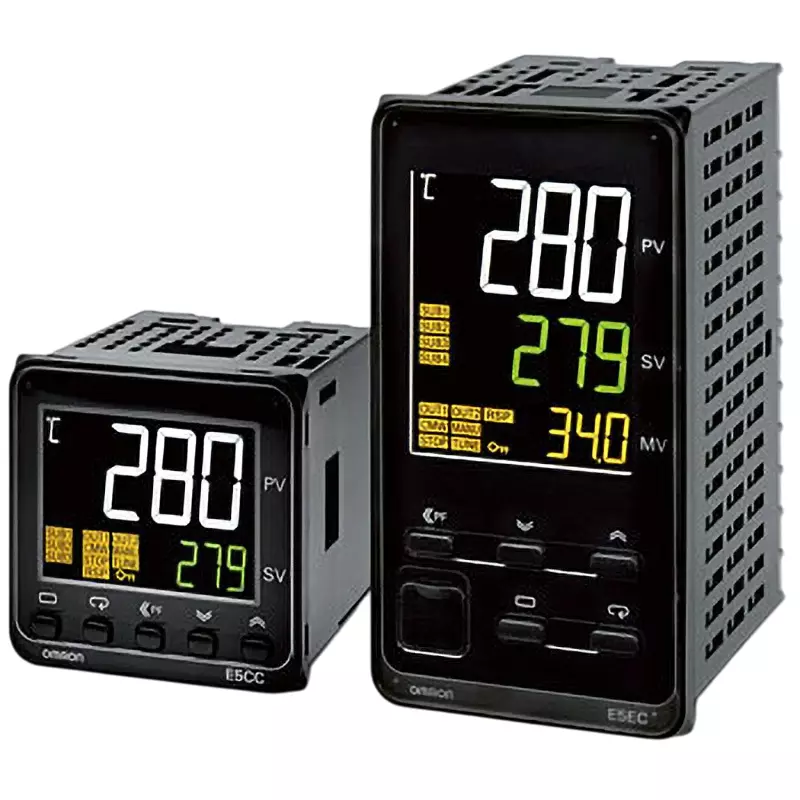

| Type of Product | Digital Temperature Controller |
| Type | E5CC |
| Input Type | Thermocouple, Resistance Temperature Detector, Sensor, Current, Voltage |
Sensor |
Thermocouple, Platinum Resistance Thermometer, Analog Input (Voltage, Current) Can Be Switched |
Type of Product |
Digital Temperature Controller |
Type |
E5CC |
Input Type |
Thermocouple, Resistance Temperature Detector, Sensor, Current, Voltage |
Dimension |
48x48 mm |
Model No |
E5CC-RX3ASM-003 |
Dimension (mm) |
Front: 48x48 |
Controls Type |
ON/OFF or 2° of Freedom PID (with Auto Tuning) |
Character Height (mm) |
PV: 15.2, SV: 7.1 |
Monotaro ID |
46676253 |
Power Supply Voltage |
AC 100-240V (50/60Hz) |
Terminal |
M3 |
No. Of Output |
3 (Common) |
Length (mm) |
60 mm |
Mass (g) |
Body: Approx. 120 g, Mounting Adapter: Approx. 10 g |
Applicable Standard |
EN 61010-1(IEC 61010-1), RCM |
Input Power |
AC100~240 V (50/60Hz) |
Din Size |
DIN48x48 mm |
Terminal Shape |
Screw Terminal Block Type |
Country of Origin |
Indonesia |
Import Country |
Direct Import from Japan |
Standard |
[Certification Standards] cULus: UL 61010-1/CSA C22.2 No.61010-1, KOSHA (S Mark) Certification (Some Models Only), Korea Radio Regulations (Radio Act: KC mark) (Some Models Only), Lloyd's Standard |
Protection Class |
Front: IP66, Rear Case: IP20, Terminal Part: IP00 |
Operating Temperature Range |
-10°C to 55°C (No Condensation, No Icing)/3 Year Warranty: -10°C to 50°C (No Condensation, No Icing) with Standard Single Unit Installation |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
