| Storage Temperature | -25° to +65° |

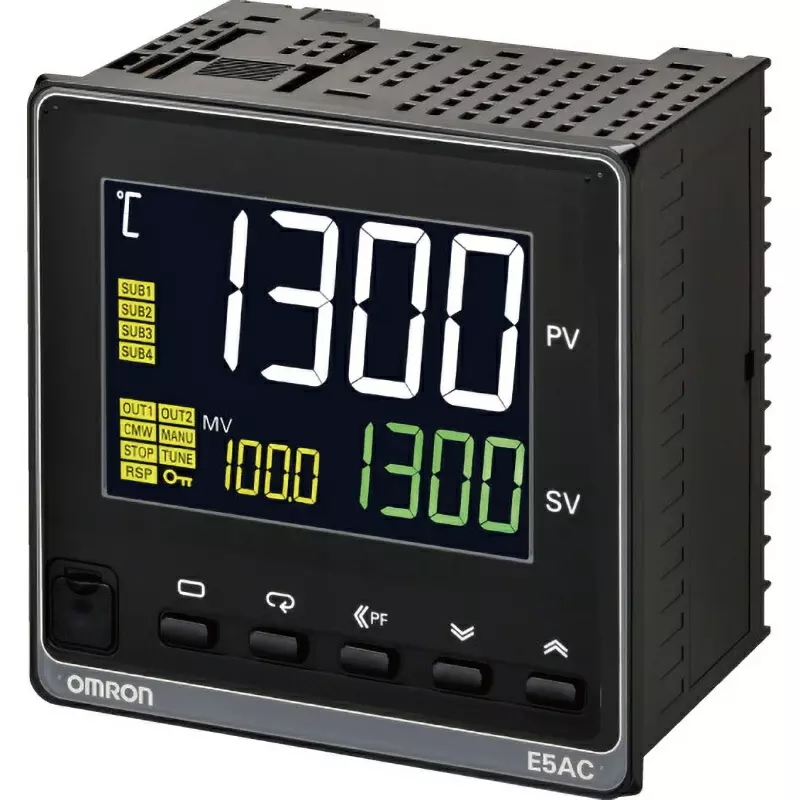

| Type of Product | Digital Temperature Controller |
| Type | E5AC |
| Input Type | Thermocouple, Resistance Temperature Detector, Sensor, Current, Voltage |
Storage Temperature |
-25° to +65° |
Type of Product |
Digital Temperature Controller |
Type |
E5AC |
Input Type |
Thermocouple, Resistance Temperature Detector, Sensor, Current, Voltage |
Dimension |
96x96 mm |
Model No |
E5AC-QR2ASM-008 |
Controls Type |
ON/OFF or 2° of Freedom PID (with Auto Tuning) |
Input |
Full Multi Input |
Character Height (mm) |
PV: 25, SV: 15, MV: 9.5 |
Monotaro ID |
66476804 |
Power Supply Voltage |
AC 100-240V (50/60Hz) |
No. Of Output |
2 Independent Points |
Mass (g) |
Body: Approx. 250 g, Mounting Adapter: Approx. 4 g x 2 Pcs |
Applicable Standard |
EN 61010-1(IEC 61010-1), RCM |
Input Power |
AC100~240 V (50/60Hz) |
Din Size |
DIN96x96 mm |
Terminal Shape |
Screw Terminal Block |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Standard |
[Certification standards] cULus: UL 61010-1/CSA C22.2 No.61010-1, Korean Radio Regulations (Radio Law: KC Mark) (some models only), Lloyd's Standard |
Protection Class |
Front: IP66, Rear Case: IP20, Terminal Part: IP00 |
Operating Temperature Range |
-10°C to 55°C (No Condensation or Icing) / 3 Year Warranty: -10°C to 50°C (No Condensation or Icing) with Standard Single Unit Installation |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
