Ships within 19 days
Model No
View
View
View
View
| Storage Temperature | -25° to +65° |

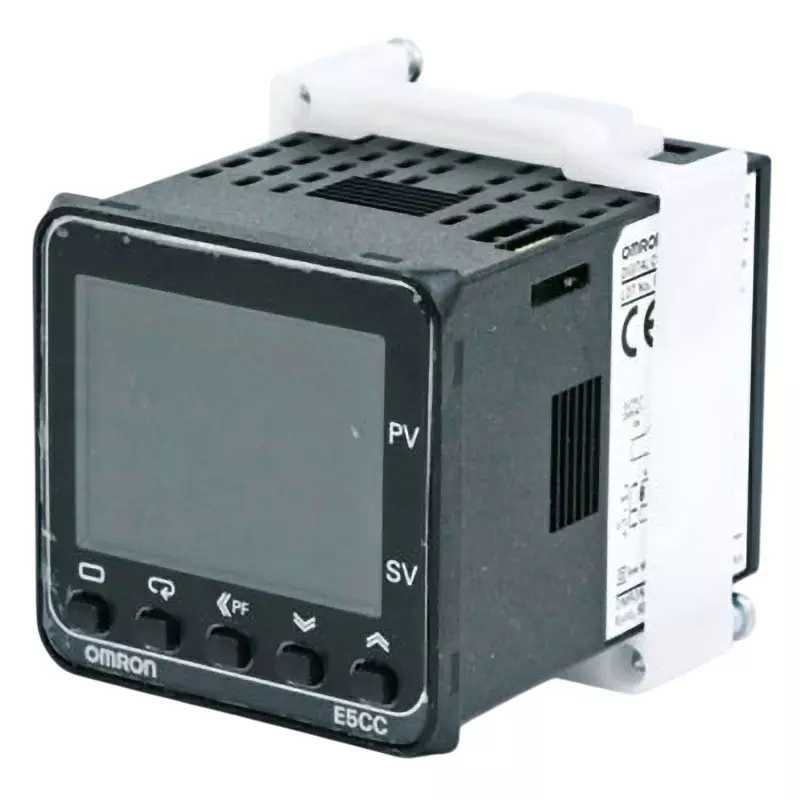

| Type of Product | Digital Temperature Controller |
| Type | E5CC-U |
| Input Type | Thermocouple, Resistance Temperature Detector, Sensor, Current, Voltage |
Storage Temperature |
-25° to +65° |
Type of Product |
Digital Temperature Controller |
Type |
E5CC-U |
Input Type |
Thermocouple, Resistance Temperature Detector, Sensor, Current, Voltage |
Dimension |
48x48 mm |
Model No |
E5CC-RW0AUM-000 |
Control Output |
Relay Output |
Controls Type |
ON/OFF or 2° of Freedom PID (with Auto Tuning) |
Input |
Full Multi Input |
Character Height (mm) |
PV: 15.2, SV: 7.1 |
Monotaro ID |
66478974 |
Power Supply Voltage |
AC 100-240V (50/60Hz) |
No. Of Output |
None |
Mass (g) |
Main Unit: Approx. 100 g, Installation Adapter: Approx. 10 g |
Applicable Standard |
EN 61010-1(IEC 61010-1), RCM |
Input Power |
AC100~240 V (50/60Hz) |
Din Size |
DIN48x48 mm |
Terminal Shape |
Plugin |
Country of Origin |
China |
Import Country |
Direct Import from Japan |
Pattern Setting |
Digital Setting with Front Keys |
Standard |
[Certification standards] cULus: UL 61010-1/CSA C22.2 No.61010-1, KOSHA (S mark) certification (some models only), Korean Radio Regulations (Radio Act: KC mark) (some models only) , Lloyd standard |
Protection Class |
Front: IP50, Rear Case: IP20, Terminal: IP00 |
Operating Temperature Range |
-10°C to 55°C (No Condensation or Icing) / 3 Year Warranty: -10°C to 50°C (No Condensation or Icing) with Standard Single Unit Installation |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
