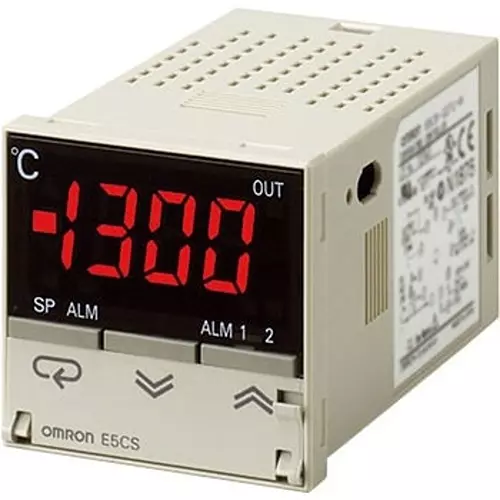

Omron Temperature Controller 20 mohm or more (at 500 V DC), E5CS-RGDU-W AC/DC24

Name: Omron Temperature Controller 20 mohm or more (at 500 V DC), E5CS-RGDU-W AC/DC24
Brand: Omron
SKU: IND.PID.436969973
Price: 25959 INR
Availability: InStock

Visit the Omron Store

EMI starts at ₹2306/month. No Cost EMI available.

Available offers

Flat ₹300 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹200 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features

Storage Temperature	-25 to 65℃ (no condensation or freezing)
Type of Product	Temperature Controller
Input Type	Thermistor
Display Type	7-segment digital display and deviation indication

More Omron PID Temperature Controller products More PID Temperature Controller products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Storage Temperature	-25 to 65℃ (no condensation or freezing)
Type of Product	Temperature Controller
Input Type	Thermistor
Display Type	7-segment digital display and deviation indication
Model No	E5CS-RGDU-W AC/DC24
Control Output	Relay contacts
Dimension (mm)	48x48
Character Height (mm)	13.5
Sensitivity	Adjustment sensitivity / 0.2% FS (ON / OFF control)
Monotaro ID	39058293
Power Supply Voltage	AC/DC24
Applicable Standard	[IEC] IEC61010-1 (Pollution degree 2, Overvoltage Category II) / [EN] EN61010-1 (Pollution degree 2, Overvoltage Category II) / [EC Directive (Resistance Voltage Directive)] EN61010-1 / [EC Directive (EMC Directive)] EN61326, EMI: EN61326 / Radiated interference field strength: EN55011 Group1 Class A, Noise terminal voltage: EN55011 Group1 Class A, Electrostatic discharge i mmunity: EN61000-4-2, Field strength i mmunity: IEC61000-4-3, Burst noise i mmunity: IEC61000-4-4, Surge i mmunity: IEC61000-4-5, Conducted interference i mmunity: EN61000-4-6 Voltage dip/interruption i mmunity: EN61000-4-11
Case Color	Light gray
Number of Input Points	1
Shape	DIN48x48 plug-in type
Terminal Shape	Plugin
Country of Origin	Japan
Control	ON / OFF control / PID control with auto tuning / PID control with self tuning
Import Country	Direct Import from Japan
Pattern Setting	Digital setting with front keys
Protection Class	(Front operation part) IP50 equivalent, (Rear case) IP20, (Terminal part) IP00
Operating Temperature Range	-10 to 55℃ (no condensation or freezing) / 3-year warranty: -10 to 50
Included Components	Embedded mounting adapter (Y92F-30)x1, Unit display labelx1, Instruction manual
Name of Manufacturer/Packer/Importer	Omron Corporation
Pack of	1 Pcs
Power Consumption (W)	2(DC24V)
Insulation Resistance (MOhm)	20 mohm or more (at 500 V DC)
