| Power Consumption | 4.1 VA or less (24 VAC) /2.3 W or less (24 VDC) |
| Storage Temperature | -25 to 65℃ |

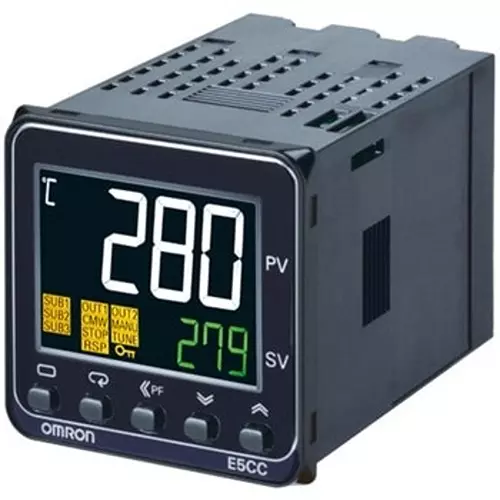

| Type of Product | Temperature Controller |
| Accuracy | (Transmission output) ± 0.3% FS or less |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Power Consumption |
4.1 VA or less (24 VAC) /2.3 W or less (24 VDC) |
Storage Temperature |
-25 to 65℃ |
Type of Product |
Temperature Controller |
Accuracy |
(Transmission output) ± 0.3% FS or less |
Input Type |
Thermocouple / resistance temperature detector / sensor / current / voltage |
Control Output |
SSR dri Ve Voltage |
Input Voltage (V) |
DC1 to 5, DC0 to 5, DC0 to 10 (input impedance 1MΩ or more) |
Character Height (mm) |
PV：15.2、SV：7.1 |
Function |
[Multi-SP function] Memorize up to 8 target values (SP0 to SP7), selectable by event input, key operation, or serial communication. [Other functions] Manual output, heating / cooling control, loop break alarm function, SP Lamp, alarm function, heater burnout detection function (including SSR failure), 40% AT, 100% AT, operation amount limit, input digital filter, self-tuning, robust tuning, PV input correction, run / stop, protect, square root calculation function , Manipulated variable rate limit, simple calculation, temperature status display function, simple program function, input moving average, display brightness setting |
Monotaro ID |
24408974 |
Power Supply Voltage |
AC/DC24 |
Input Impedance |
Current input 150 Ω or less, voltage input 1M or more (When connecting ES2-HB / THB, use 1: 1 connection.) |
No. Of Output |
2 (Common common) |
Mass (g) |
Body: about 120, adapter: about 10 |
Shape |
DIN48x48 |
Communication Protocol |
RS-485 (2-wire half-duplex) |
Terminal Shape |
Push-in Plus terminal block |
Country of Origin |
Japan |
Control |
ON/OFF control/PID control with auto tuning |
Import Country |
Direct Import from Japan |
Pattern Setting |
Digital setting with front keys |
Standard |
[Certification standard] cULus: UL 61010-1 / CSA C22.2 No.61010-1, KOSHA (S mark) certification (only for some models), Korean radio regulations (Radio law: KC mark) (some models only) , Lloyd standard, [Applicable standard] EN 61010-1 (IEC 61010-1) |
Protection Class |
Front: IP66, Rear case: IP20, Terminal part: IP00 |
Operating Temperature Range |
-10 to 55℃ |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Manufacturer Part Number |
E5CC-QX2DBM-006 |
