| Power Consumption | 8.3 VA or less |
| Storage Temperature | -25 to 65℃ |
| Type of Product | Temperature Controller |
| Accuracy | (Transmission output) ± 0.3% FS or less, (Remote SP input) ± 0.2% FS ± 1 digit or less |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Power Consumption |
8.3 VA or less |
Storage Temperature |
-25 to 65℃ |
Type of Product |
Temperature Controller |
Accuracy |
(Transmission output) ± 0.3% FS or less, (Remote SP input) ± 0.2% FS ± 1 digit or less |
Input Type |
Thermocouple / resistance temperature detector / sensor / current / voltage |
Control Output |
SSR dri Ve Voltage |
Display |
Three-stage display. Contents: PV / SV / MV, PV / SV / Multi SP or remaining soak time, etc. |
Input Voltage (V) |
DC1 to 5, DC0 to 5, DC0 to 10 (input impedance 1MΩ or more) |
Character Height (mm) |
PV：18.0、SV：11.0、MV：7.8 |
Function |
[Multi-SP function] Memorize up to 8 target values (SP0 to SP7), selectable by event input, key operation, or serial communication. [Other functions] Manual output, heating / cooling control, loop break alarm function, SP Lamp, alarm function, heater burnout detection function (including SSR failure), 40% AT, 100% AT, operation amount limit, input digital filter, self-tuning, robust tuning, PV input correction, run / stop, protect, square root calculation function , Manipulated variable rate limit, simple calculation, temperature status display function, simple program function, input moving average, display brightness setting |
Monotaro ID |
24408834 |
Power Supply Voltage |
AC100 to 240 |
No. Of Output |
Independence 2 |
Mass (g) |
Body: about 210, adapter: about 4x2 |
Shape |
DIN48x96 |
Terminal Shape |
Push-in Plus terminal block |
Country of Origin |
Japan |
Control |
ON/OFF control/PID control with auto tuning |
Import Country |
Direct Import from Japan |
Pattern Setting |
Digital setting with front keys |
Standard |
[Certification standard] cULus: UL 61010-1 / CSA C22.2 No. 61010-1, Korea Radio Regulations (Radio law: KC mark) (some models only), Lloyd standard, [Compliant standard] EN 61010-1 ( (IEC 61010-1) |
Protection Class |
Front: IP66, Rear case: IP20, Terminal part: IP00 |
Operating Temperature Range |
-10 to 55℃ |
Name of Manufacturer/Packer/Importer |

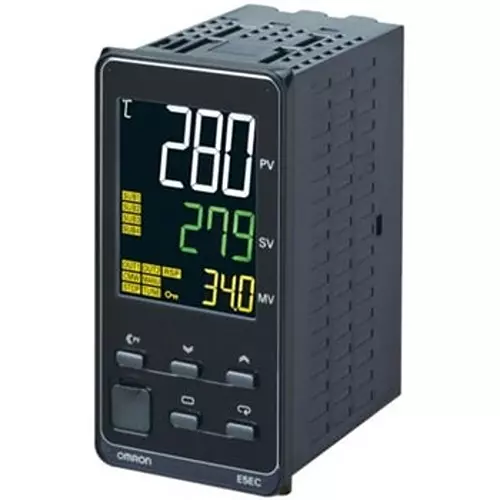

Omron Corporation |
Manufacturer Part Number |
E5EC-QX2ABM-011 |
