| Storage Temperature | -25 to 65℃ (no condensation or freezing) |

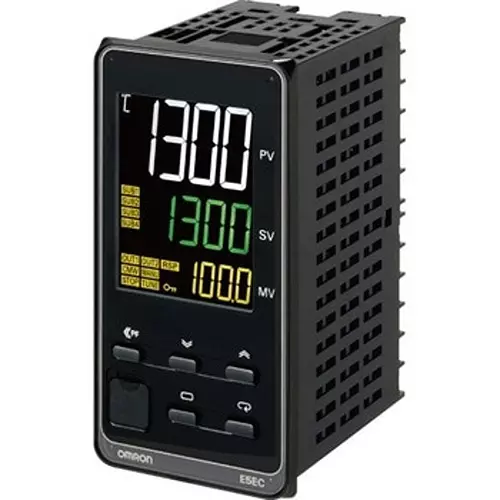

| Type of Product | Digital Temperature Controller |
| Accuracy | (Transmission output) ± 0.3% FS or less |
| Input Type | Thermocouple / resistance temperature detector / sensor / current / voltage |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Storage Temperature |
-25 to 65℃ (no condensation or freezing) |
Type of Product |
Digital Temperature Controller |
Accuracy |
(Transmission output) ± 0.3% FS or less |
Input Type |
Thermocouple / resistance temperature detector / sensor / current / voltage |
Model No |
E5EC-PR4ASM-000 |
Control Output |
Position proportional |
Input Voltage (V) |
DC1 to 5, DC0 to 5, DC0 to 10 (input impedance 1MΩ or more) |
Character Height (mm) |
PV：18, SV：11, MV：7.8 |
Function |
[Multi-SP function] Memorize up to 8 target values (SP0 to SP7), selectable by event input, key operation, or serial co mmunication. [Other functions] Manual output, heating / cooling control, loop break alarm function, SP Lamp, alarm function, heater burnout detection function (including SSR failure), 40% AT, 100% AT, operation amount limit, input digital filter, self-tuning, robust tuning, PV input correction, run / stop, protect, square root calculation function , Manipulated variable rate limit, simple calculation, temperature status display function, simple program function, input moving average, display brightness setting |
Monotaro ID |
66480408 |
Power Supply Voltage |
AC100 to 240 V |
Input Impedance |
Current input 150 Ω or less, voltage input 1 MΩ or more (When connecting ES2-HB-N/THB-N, use a 1:1 connection.) |
No. Of Output |
4 |
Mass (g) |
Body: about 210, adapter: about 4x2 |
Shape |
DIN48x96 |
Terminal Shape |
Screw terminal block |
Country of Origin |
Japan |
Control |
ON/OFF control/PID control with auto tuning |
Import Country |
Direct Import from Japan |
Pattern Setting |
Digital setting with front keys |
Protection Class |
Front: IP66, Rear case: IP20, Terminal part: IP00 |
Operating Temperature Range |
-10 to 55°C (no condensation or freezing) / 3-year warranty: -10 to 50°C (no condensation or freezing) when installed as standard |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
