| Storage Temperature | -25 to +65°C (But No Condensation or Freezing) |

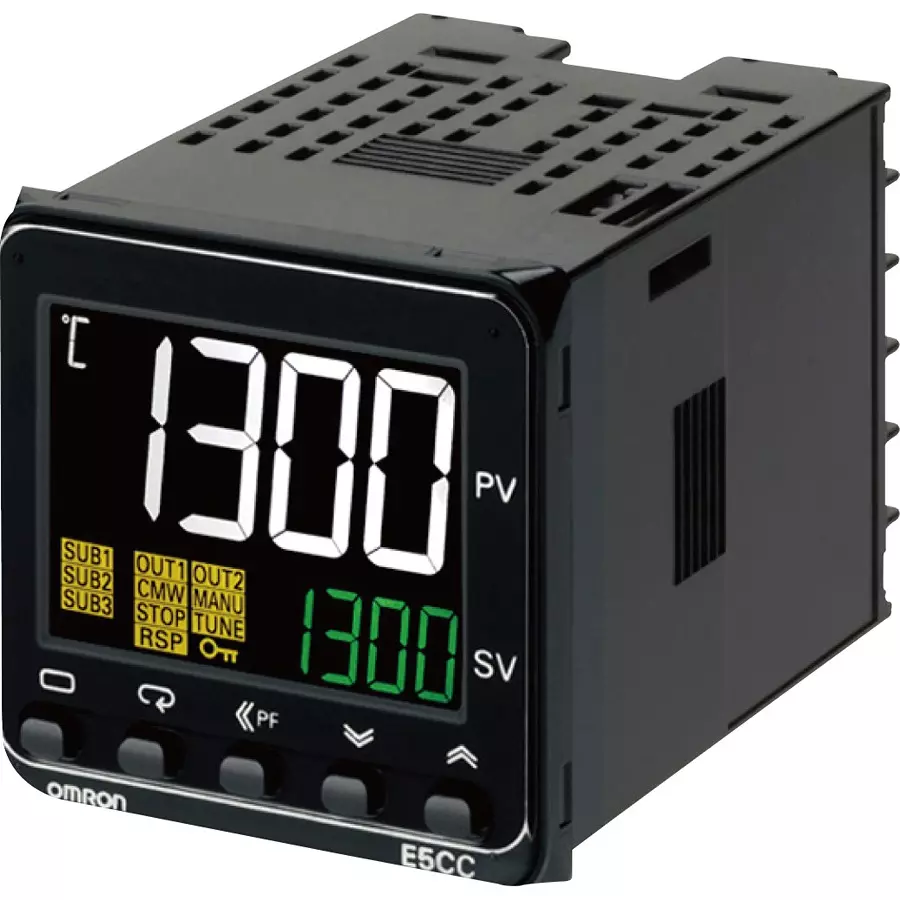

| Type of Product | Digital Temperature Controller |
| Type | E5CC |
| Input Type | Thermocouple, Resistance Temperature Detector, Sensor, Current, Voltage |
Storage Temperature |
-25 to +65°C (But No Condensation or Freezing) |
Type of Product |
Digital Temperature Controller |
Type |
E5CC |
Input Type |
Thermocouple, Resistance Temperature Detector, Sensor, Current, Voltage |
Dimension |
48x48 mm |
Model No |
E5CC-CQ3ASM-002 |
Control Output |
Linear Current Output |
Controls Type |
ON/OFF or 2° of Dreedom PID (With Auto Tuning) |
Input |
Full Multi Input |
Character Height (mm) |
PV: 15.2 mm, SV: 7.1 mm |
Monotaro ID |
66478712 |
Power Supply Voltage |
AC 100-240 V (50/60 Hz) |
No. Of Output |
3 (Common) |
Mass (g) |
Body: Approx. 120 g, Mounting Adapter: Approx. 10 g |
Applicable Standard |
EN 61010-1(IEC 61010-1), RCM |
Shape |
DIN48×48 |
Input Power |
AC100~240 V (50/60 Hz) |
Terminal Shape |
Screw Terminal Block |
Country of Origin |
Indonesia |
Import Country |
Direct Import from Japan |
Pattern Setting |
Digital Setting with Front Keys |
Standard |
[Certification Standards] cULus: UL 61010-1/CSA C22.2 No.61010-1, KOSHA (S mark) Certification (Some Models Only), Korean Radio Regulations (Radio Act: KC mark) (Some Models Only) , Lloyd Standard |
Protection Class |
Front: IP66, Rear Case: IP20, Terminal Part: IP00 |
Operating Temperature Range |
-10 to 55°C (No Condensation or Icing) / 3 Year Warranty: -10 to 50°C (No Condensation or Icing) with Standard Single Unit Installation |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
