Shinko Technos Digital Indicating Controller AC100 to 240 Power Supply Voltage About 8 Power, ACS-13A-S/M，A2

Name: Shinko Technos Digital Indicating Controller AC100 to 240 Power Supply Voltage About 8 Power, ACS-13A-S/M，A2
Brand: Shinko Technos
SKU: IND.PID.845682306
Price: 33039 INR
Availability: InStock

Visit the Shinko Technos Store

EMI starts at ₹2935/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Digital Indicating Controller
Model No	ACS-13A-S/M，A2
Control Output	Non-contact voltage (for SSR drive)
Color	Black

More Shinko Technos PID Temperature Controller products More PID Temperature Controller products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Digital Indicating Controller
Model No	ACS-13A-S/M，A2
Control Output	Non-contact voltage (for SSR drive)
Color	Black
Display	PV display: 11-segment LCD with red/green/orange backlight, SV display: 11-segment LCD with green backlight, MEMO display: 11-segment LCD with green backlight, Operation display: orange backlight
Voltage	Non-contact voltage (for driving SSR): 12DC ±15%
Input	Multi input
Function	Power outage countermeasures, self-diagnosis, automatic cold junction temperature compensation (thermocouple only), burnout, input abnormality, display range/control range, warm-up display, automatic/manual control switching, console communication
Monotaro ID	51790334
Mass (g)	About 120
Ambient Humidity (% RH)	35 to 85 (with no condensation)
Type of Sign	Uses a special mounting frame (mountable panel thickness: 1 to 5 mm)
Country of Origin	Japan
Import Country	Direct Import from Japan
Pattern Setting	Sheet key input
Included Components	Mounting frame x 1, Gasket A (attached to the main body) x 1, Instruction manual (A3 double-sided Japanese/English) x 1, [CT (Current Transformer)] CTL-6-S-H x 1 [When option: W (20A) is added], 2 [When option: W3 (20A) is added], CTL-12-S36-10L1U x 1 [When option: W (50A) is added], 2 [When option: W3 (50A) is added]
Name of Manufacturer/Packer/Importer	Shinko Technos
Power Consumption (VA)	About 8
Power Supply Voltage (V)	AC100 to 240
Insulation Resistance (MOhm)	500 V DC, 10 or more
Options	2nd alarm
Dust/Water Protection	Front IP66
Case Material	Flame retardant resin
Voltage (Dc)	0 to 1 V DC, 0 to 10 V DC, 1 to 5 V DC, 0 to 5 V DC

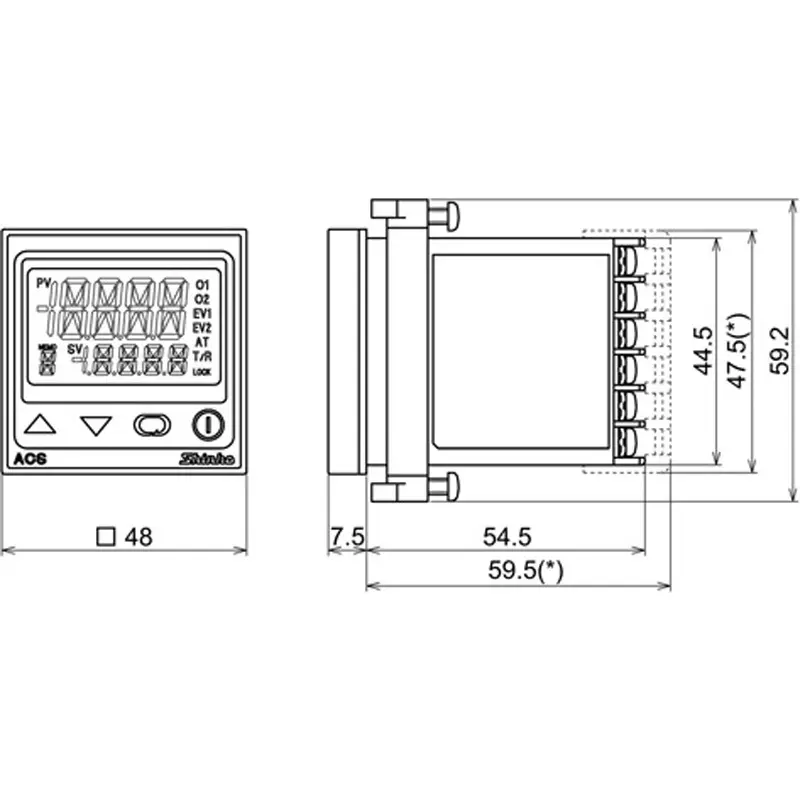

Outer Dimensions, Width W x Height H x Depth D (mm)	48x48x62 (with under-neck gasket A: 54.5)
Safety Standard	UL certification: Input rating 100-240 V AC, 24 V AC/DC File No.E159038
