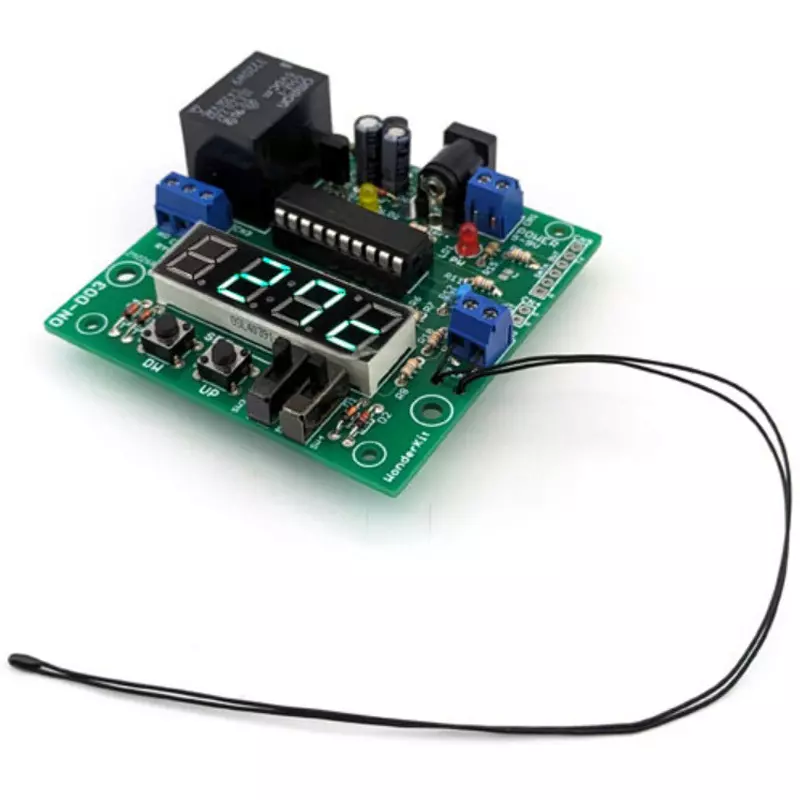

| Sensor | NTC thermistor 1 piece / Can be used underwater Sensor part Resin processing Heat resistant -55 to 125℃ / Cord length Approx. 20cm Thermal time constant 7s in air |
| Type of Product | Temperature Sensor |
| Model No | ON-DO3 |
| Display | 3 digits with 7 green segments (integer values only) |
Sensor |
NTC thermistor 1 piece / Can be used underwater Sensor part Resin processing Heat resistant -55 to 125℃ / Cord length Approx. 20cm Thermal time constant 7s in air |
Type of Product |
Temperature Sensor |
Model No |
ON-DO3 |
Display |
3 digits with 7 green segments (integer values only) |
Monotaro ID |
50694299 |
Power Supply Voltage |
Standard DC6.0V (5.0 to 9.0V possible)/DC jack: Center positive Φ2.1mm/General purpose terminal: 2P terminal block |
Country of Origin |
Japan |
Temperature Setting Range |
-35 to 105℃ |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
Approximately -20 to 70℃ *However, no freezing or condensation |
Name of Manufacturer/Packer/Importer |
Kyoritsu Electronics Industry Co., Ltd. |
Relay |
1 piece (1 circuit, 1 contact)/Rated load: AC120V 10A, DC 30V 8A, Relay operation mode: 2 modes/Relay ON when temperature is higher than set temperature, relay ON when temperature is lower than set temperature |
Specifications |
Hysteresis setting range: 0 to 5℃, Data out: Outputs the displayed temperature [ASCII character], TTL out: When the relay is on, "H: 3.3 to 2.8V" / When the relay is off, "L: 0V" *Current on the connected side As the flow increases, the output voltage value decreases. |

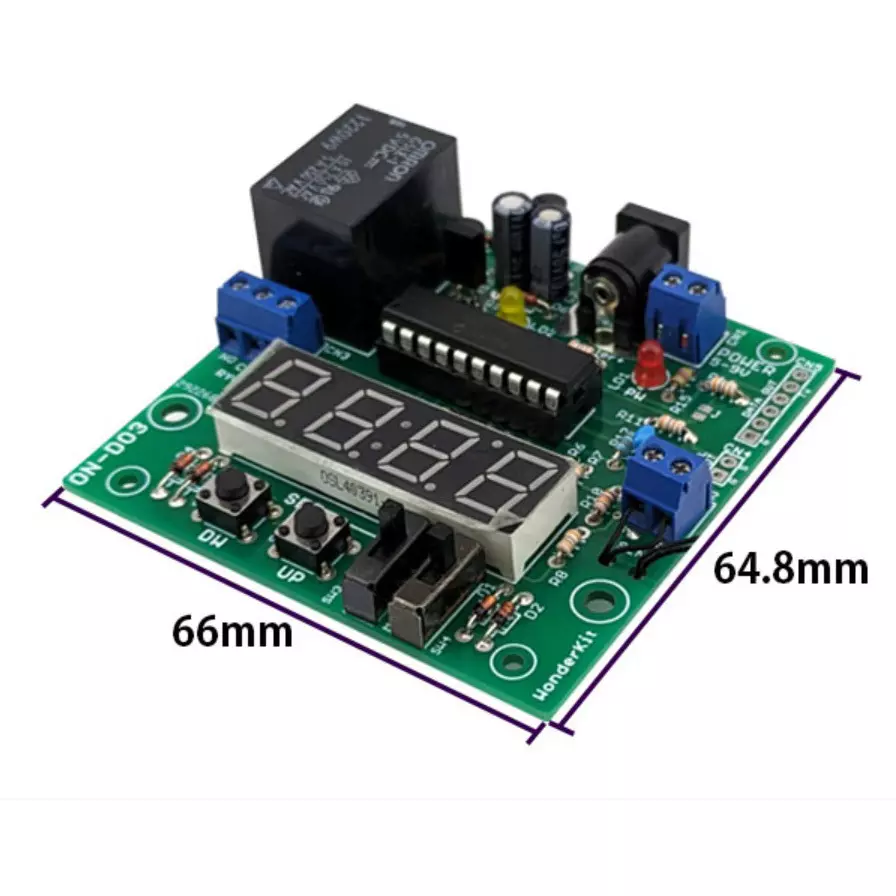

Board Dimensions (mm) |
66.0(W)x64.8(D)x22.0(H) |
Measurement Cycle (μs) |
About 1 second |
Measurement Error |
Maximum ±1.6℃ |
Operating current (mA) |
Display only: Max. 45, Relay operation: Max. 110 |
