| Type of Product | Commercial Duty Air Compressor Motor |
| Voltage | 230V AC |
| Phase | Single |
| UNSPSC Code | 26101602 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Commercial Duty Air Compressor Motor |
Voltage |
230V AC |
Phase |
Single |
UNSPSC Code |
26101602 |
Part No |
45YU15 |
Country of Origin |
India |
Standard |
CSA UL Listed |
Motor Shaft Design |
Keyed |
HP |
3 |
Shaft Diameter |
1-1/8 inch |
Duty Cycle |
Continuous |
Thermal Protection |
Manual |
Current Limits |
18.6-17.5 A |
Motor Mounting Position |
Rigid Base |
Hz |
60 Hz |
Motor Sub Application |
Condenser Fan |
Speed Range |
1,701-1,800 |
Enclosure Design |
Open Dripproof |
Class Type |
F |

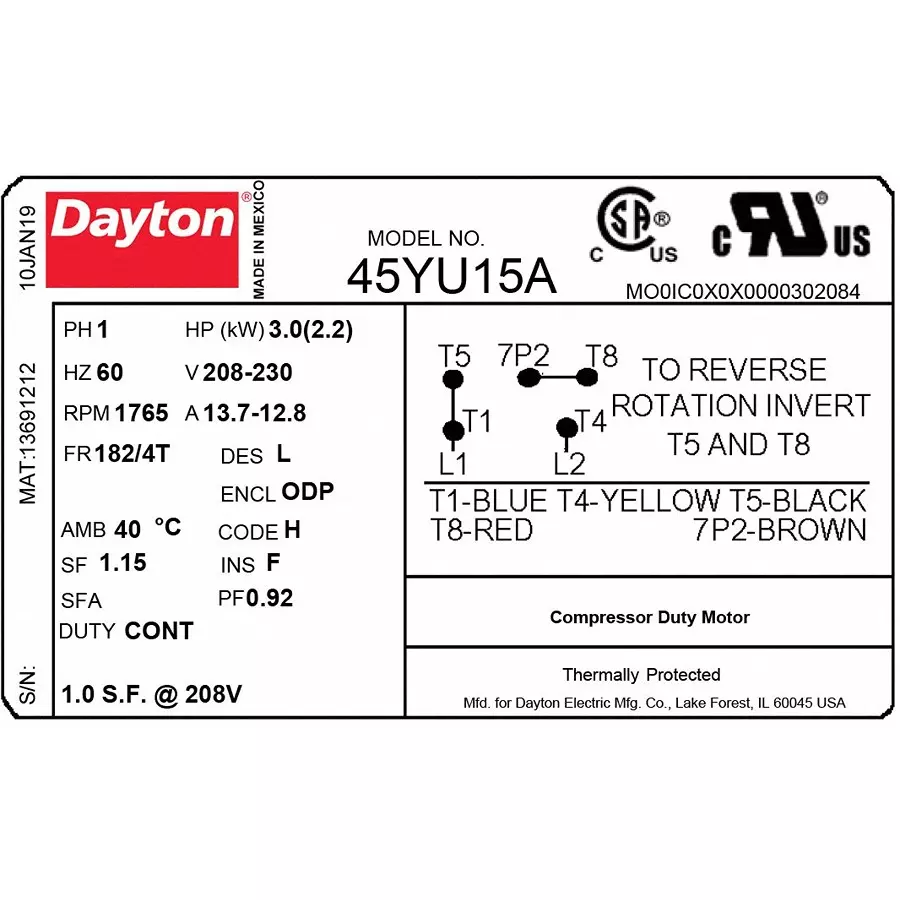

Nameplate |
1,765 |
Shaft rotation |
CW/CCW |
Overall Length |
14-1/4 inch |
Shaft Length |
2-3/4 inch |
Motor Service Factor |
1.15 |
Max. Ambient Temp. (F) |
40 \xc2\xb0C |
Manufacturer Part Number |
45YU15 |
Item Code |
45YU15 |
Motor Design |
Capacitor-Start/Run |
Motor Bearings |
Ball |
Motor Application |
Air Compressor |
Frame |
184T |
Name of Manufacturer/Packer/Importer |
Grainger Industrial Supply India Pvt. Ltd |
Overall Length (cm) |
36.2 cm |
Shaft Diameter (mm) |
28.575 mm |
Shaft Length (mm) |
69.85 mm |
