| Model No | 5x8x7.5 |
| Type of Product | Air Coil Hose |
| Color | yellow |
| Material | Hose/polyurethane, coupler/steel (chrome plated) |
Model No |
5x8x7.5 |
Type of Product |
Air Coil Hose |
Color |
yellow |
Material |
Hose/polyurethane, coupler/steel (chrome plated) |
Inner Diameter |
5 mm |
Monotaro ID |
9926086 |
Operating Temperature Range |
-5 to 60°C |
Country of Origin |
TAIWAN |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
0.8 |
Fluid |
Air |

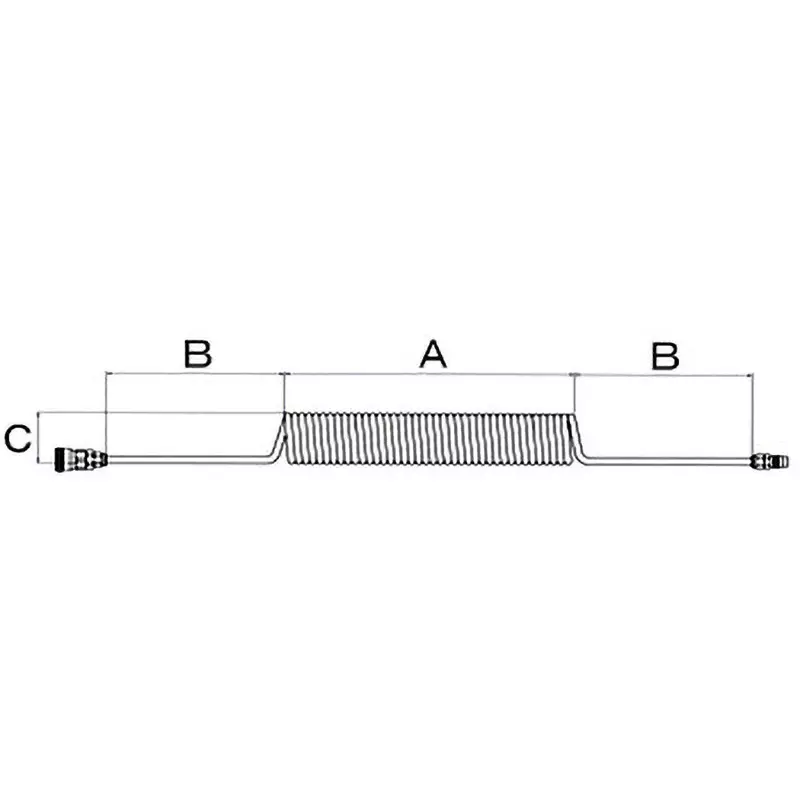

Dimensions B (mm) |
150 |
Dimensions C (mm) |
58Φ±5 |
Inner x Outer Diameter (mm) |
5x8 |
Hose Length (mm) |
7500 |
Coupler Type |
Small: 20PPA, Large: 20SP |
Range to Use (mm) |
6000 |
Outer Diameter (Φmm) |
8 |
Dimensions A (mm) |
410±30 |
