| Model No | HP-2P |
| Type of Product | High Pressure Coupler Plug |
| Material | Body: S45C (zinc plated), Valve packing: NBR |
| Monotaro ID | 6069108 |
Model No |
HP-2P |
Type of Product |
High Pressure Coupler Plug |
Material |
Body: S45C (zinc plated), Valve packing: NBR |
Monotaro ID |
6069108 |
Operating Temperature Range |
-20 to +80°C |
Suitable Fluid |
hydraulic oil |
Country of Origin |
JAPAN |
Thread Size |
Rc1/4 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Mass (g) |
45 |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
21 |
Mating Connection Size |
R1/4 |
Socket or Plug |
Plug |

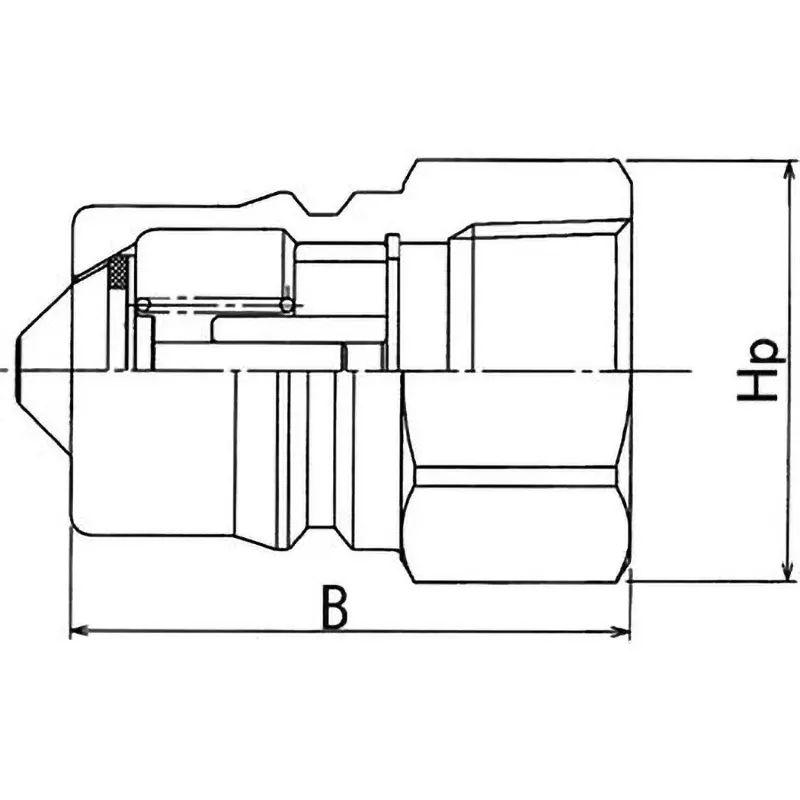

Dimensions B (mm) |
32.5 |
Dimension Hp (mm) |
Hex 19 x Φ20.5 |
