| Model No | HP-8P |

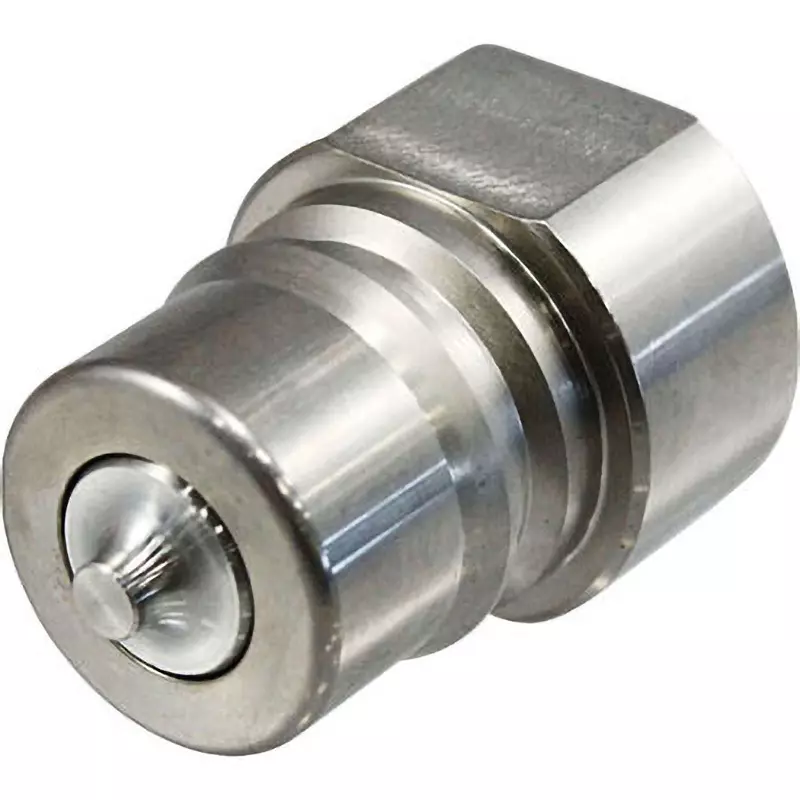

| Type of Product | High Pressure Coupler Plug |
| Material | Body: S45C (zinc plated), Valve packing: NBR |
| Monotaro ID | 6069151 |
Model No |
HP-8P |
Type of Product |
High Pressure Coupler Plug |
Material |
Body: S45C (zinc plated), Valve packing: NBR |
Monotaro ID |
6069151 |
Operating Temperature Range |
-20 to +80°C |
Suitable Fluid |
hydraulic oil |
Country of Origin |
JAPAN |
Thread Size |
Rc1 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Mass (g) |
353 |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
21 |
Mating Connection Size |
R1 |
Socket or Plug |
Plug |

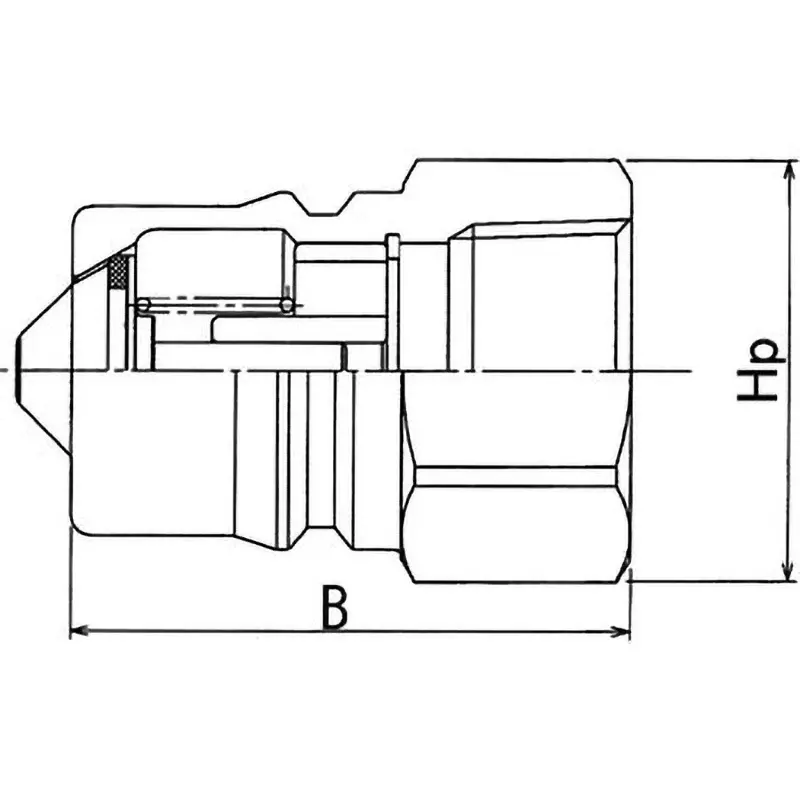

Dimensions B (mm) |
61 |
Dimension Hp (mm) |
Two sides 41 x Φ47 |
