| Model No | FRL-2-03 |

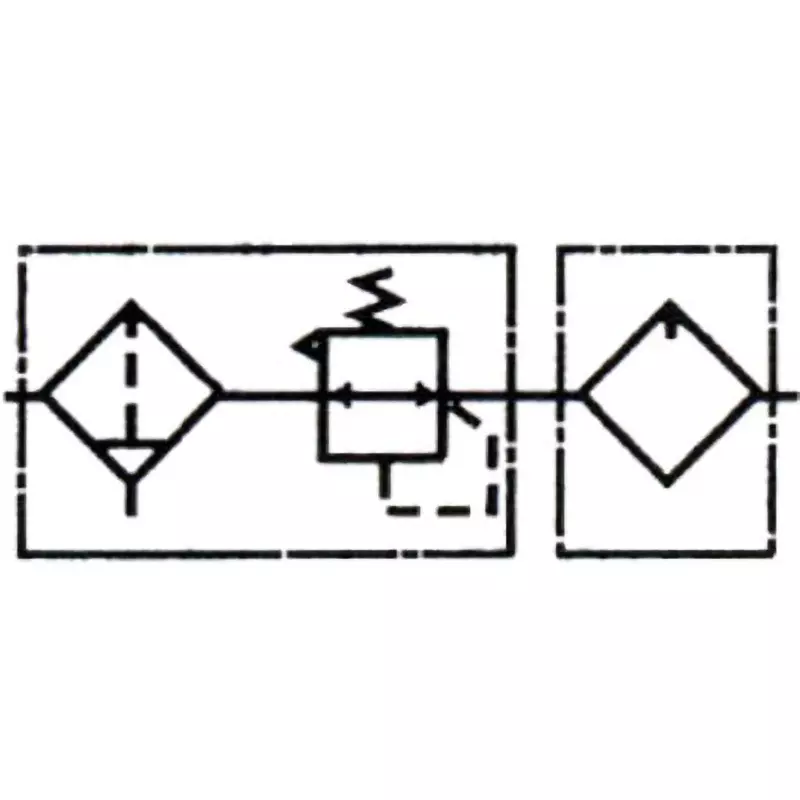

| Type of Product | Filter Regulator + Lubricator, Semi-Auto Drain Type |
| Material | Aluminum alloy |
| Monotaro ID | 34891656 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
FRL-2-03 |
Type of Product |
Filter Regulator + Lubricator, Semi-Auto Drain Type |
Material |
Aluminum alloy |
Monotaro ID |
34891656 |
Operating Temperature Range |
5 - 60°C |
Suitable Fluid |
Compressed air |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Pipe Connection Diameter |
PT3/8 |
Maximum Operating Pressure (MPa) |
1 |
Lubricator Oil Capacity (mL) |
125 |
Maximum Flow Rate (LPM) |
2500 |
Minimum Working Pressure (MPa) |
0.2 (entrance side) |
LID Material |
Polyacetal |
Thread Type |
PT |
Filtration |
5 μ |
Assured Pressure Resistance (MPa) |
1.2 |
Material (Ball Guard) |
Zinc alloy |
Filter Drain Storage Volume (mL) |
80 |
Drain Hole Diameter |
Inner diameter Φ4 x outer diameter Φ7mm (Applicable tube: inner diameter Φ6.5 x outer diameter Φ10mm) |
Pressure Setting Range |
0.05~0.85 Mpa (exit side) |
Type of Terminal Fitting |
Bracket mounting |
Ball Material |
Polycarbonate |
