| Model No | M0508-10Y |
| Type of Product | Air Coil Hose Tapped Type |
| Color | yellow |
| Material | Polyurethane |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
M0508-10Y |
Type of Product |
Air Coil Hose Tapped Type |
Color |
yellow |
Material |
Polyurethane |
Inner Diameter |
5 mm |
Monotaro ID |
18645156 |
Operating Temperature Range |
-20 to 60°C |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Overall Length (mm) |
10000 |
Import Country |
Direct Import from Japan |
Maximum Operating Pressure (MPa) |
0.8 |
Fluid |
Air |
Connector Diameter |
G1/4 |
Included Components |
PT1/4xPF1/4 |

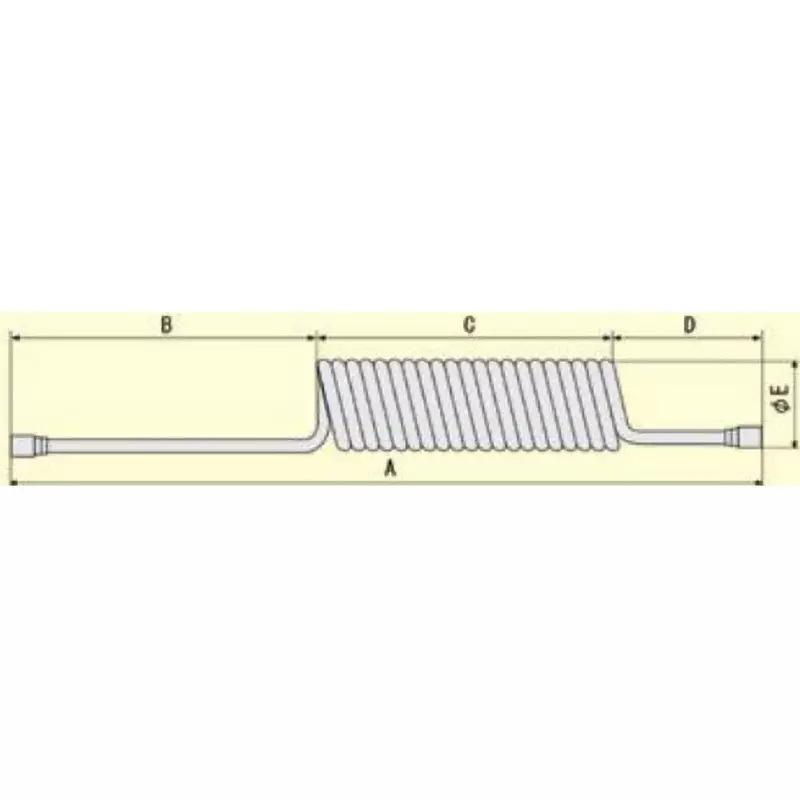

Dimensions B (mm) |
500 |
Dimensions C (mm) |
560 |
Inner x Outer Diameter (mm) |
5x8 |
Range to Use (mm) |
8000 |
Dimensions A (mm) |
1160 |
Dimensions E (mm) |
51 |
Length L (mm) |
10000 |
Dimensions D (mm) |
100 |
