| Model No | HC20AD |

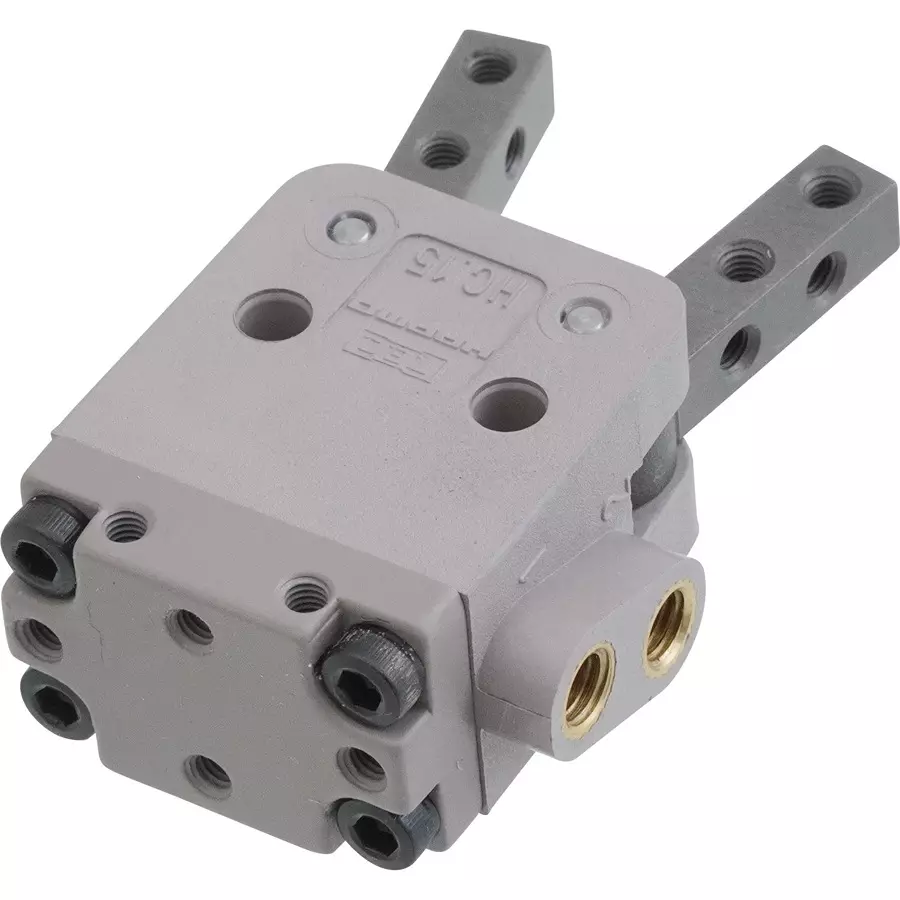

| Type of Product | Lever Chuck |
| Monotaro ID | 87966977 |
| Frequency | Max / 100 CPM |
Model No |
HC20AD |
Type of Product |
Lever Chuck |
Monotaro ID |
87966977 |
Frequency |
Max / 100 CPM |
RoHS Directive |
Correspondence |
Port size |
M5x0.8 mm |
Operating Temperature Range |
-10 to 60°C (However, use it without freezing) |
Repeatability |
± 0.1 mm (however, the middle point of the claw) |
Suitable Fluid |
Compressed Air (No Lubrication) |
Cross Sectional Area |
Cylinder: 4.3 cm² |
Body Material |
Die-cast |
Operating Pressure Range |
0.2 - 0.6 MPa |
Acting Type |
Double Acting |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
Import Country |
Direct Import from Japan |
