| Operating Temperature Range | 0 to 60°C (no freezing) |
| Country of Origin | Japan |
| Packaging Type | Normal packaging |
| Shape | Union Straight |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Operating Temperature Range |
0 to 60°C (no freezing) |
Country of Origin |
Japan |
Packaging Type |
Normal packaging |
Shape |
Union Straight |
Outer Diameter |
Φ6 mm |
Material |
Lock claw: stainless steel Release ring: Polyacetal (POM) Tube: Fluororesin, polyamide, etc. Guide ring/metal body: SUS303 equivalent Elastic sleeve/O ring: Nitrile rubber (NBR) Resin body: Polybutylene terephthalate (PBT) |
Monotaro ID |
9147311 |
Type of Product |
Union Straight |
Weight |
6.2 g |
Vacuum Pressure |
-100 kPa |
Model No |
SPU6 |
Product Type |
Corrosion resistant type |
Maximum Operating Pressure |
1 MPa |
Suitable Fluid |
Air, Water (Conditions Apply) |

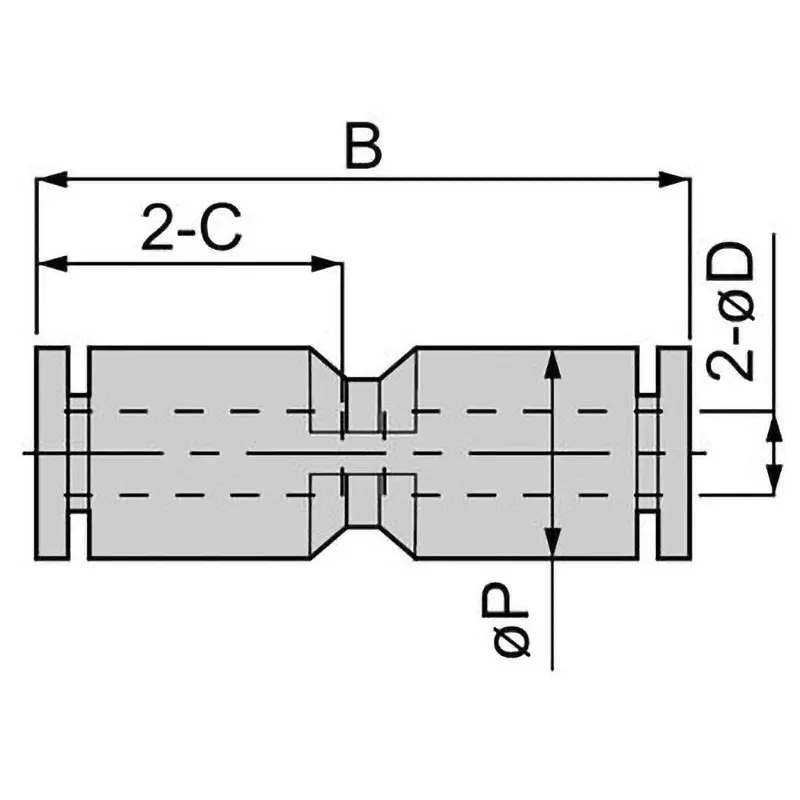

Dimensions C (mm) |
17 mm |
Dimensions B (mm) |
34.9 mm |
Section Area |
12.5 mm² |
Dimension P1 (mm) |
12.5 |
RoHS Directive |
Correspondence |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
