| Operating Temperature Range | 0 to 60°C (no freezing) |
| Country of Origin | Japan |
| Shape | Straight |
| Outer Diameter | Φ6 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Operating Temperature Range |
0 to 60°C (no freezing) |
Country of Origin |
Japan |
Shape |
Straight |
Outer Diameter |
Φ6 mm |
Series |
E3 / E7 series |
Monotaro ID |
35315271 |
Type of Product |
Coupling Socket Bulkhead |
Weight |
18 g |
Vacuum Pressure |
-100 kPa |
Model No |
CPSE7M-6 |
Product Type |
Separate type |
Maximum Operating Pressure |
0.9 MPa |
Suitable Fluid |
Air, Water (Conditions Apply) |

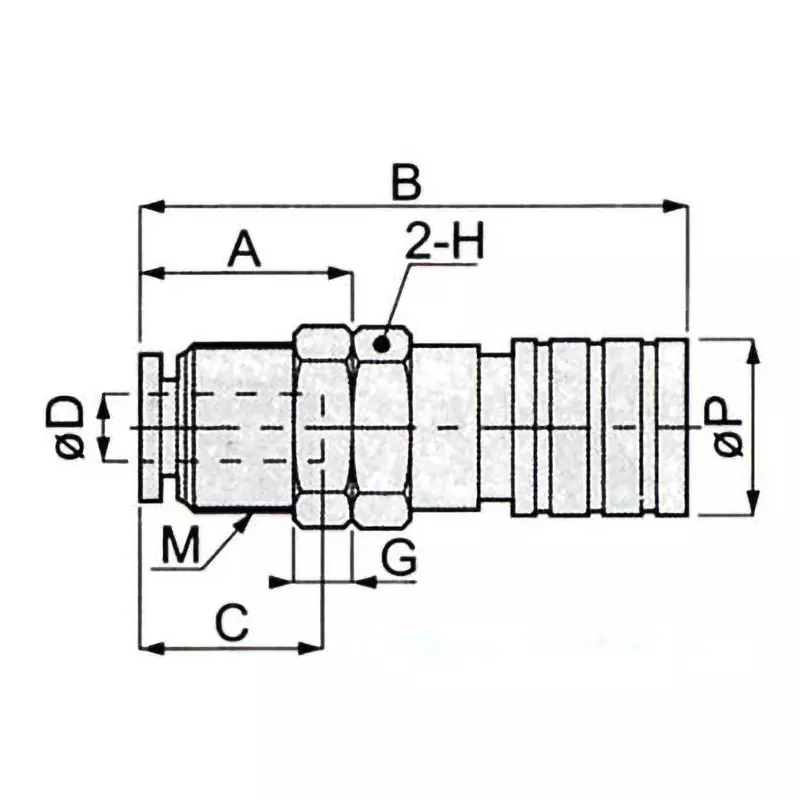

Dimensions C (mm) |
11.7 mm |
Dimensions B (mm) |
32.2 mm |
Dimensions A (mm) |
12.4 mm |
Section Area |
7.7 mm² |
Width Across Flats |
14 mm |
Dimension P1 (mm) |
11.5 |
Trusco Part No. |
310-0448 |
Dimensions g (mm) |
4 mm |
Dimensions M (mm) |
M12X1 mm |
Name of Manufacturer/Packer/Importer |
Pisco Co. Ltd |
