Model No
View
View
View
View
| Coil Voltage Rating (V) | DC24 |
| Mass (g) | About 35 |
| Terminal Shape | Printed Circuit Board Terminals |
| CR Circuit | Nothing |
Coil Voltage Rating (V) |
DC24 |
Mass (g) |
About 35 |
Terminal Shape |
Printed Circuit Board Terminals |
CR Circuit |
Nothing |
Return Voltage |
More than 10 |

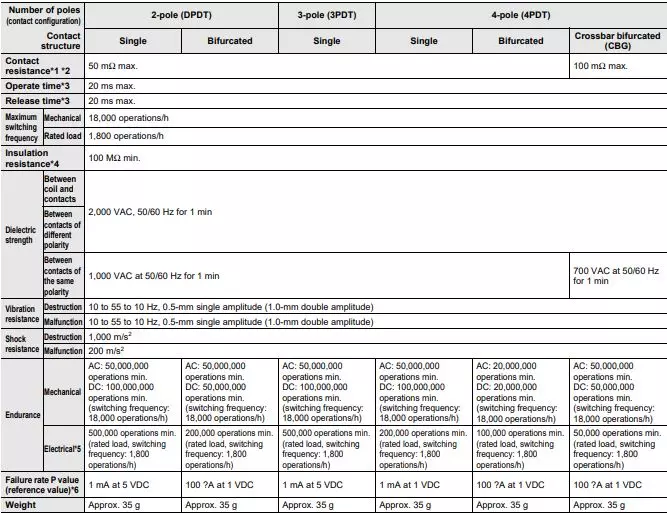

Contact Configuration |
2C |
Mechanical Durability |
100 million times (opening and closing frequency 18000 times / h) |
Type |
Relay for control panel |
Contact Mechanism |
single |
Coil Resistance |
参考値：662 (コイル温度23℃時、公差DCコイル抵抗±15%) |
Rated Voltage (V) |
24 V |
Return Time (ms) |
20 or less, when the rated operating voltage is applied. Ambient temperature condition 23 ° C |
Outer Dimensions (mm) |
21.5 or less x 28 or less x 36 or less |
Contact Resistance |
50 or less (DC5V 1A voltage drop method) |
Rated Carrying Current (A) |
5 |
No. of Pole |
2 Pole |
Connection Type |
Standard type |
Vibration Resistance (Endurance) |
10 to 55 to 10 Hz, single amplitude 0.5 mm (double amplitude 1.0 mm) |
Insulation Resistance |
100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage) |
Operating Time (ms) |
20 or less (When rated operating voltage is applied, contact bounce is not included. Ambient temperature condition + 23 ° C) |
Pin Number |
8 |
Monotaro ID |
39088366 |
Vibration Resistance (Mis-operation) |
10 to 55 to 10 Hz, single amplitude 0.5 mm (double amplitude 1.0 mm) |
Indicator Lamp |
Nothing |
Operating Voltage |
80% or less |
Type of Product |

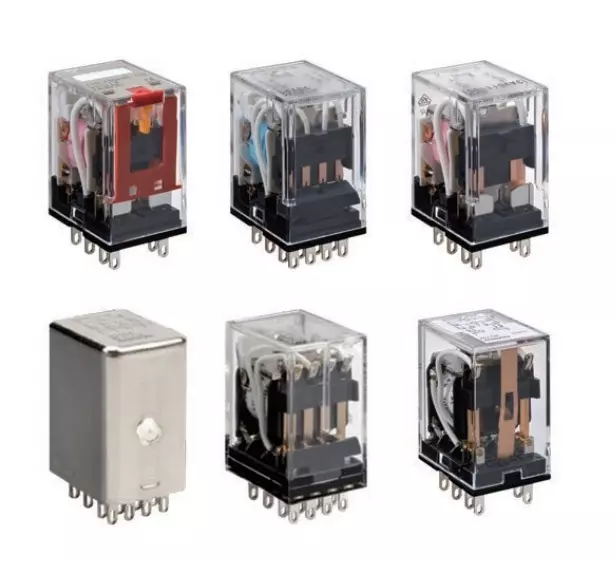

Mini Power Relay |
Model No |
MY2-02 DC24 |
Resistive Load |
AC220V 5A、DC24V 5A |
Contact Material |
Ag |
Shock Resistance |
1000m/s<sup>2</sup> |
Ambient Humidity to Use |
5～85%RH |
Series |
MY2 Series |
Classification |
Single contact type |
Rated Current (mA) |
36.3 (コイル温度23℃時、公差DCコイル抵抗±15%) |
with / without Diode |
Nothing |
Electrical Durability |
500,000 times or more (rated load, switching frequency 1800 times / h, ambient temperature condition + 23 ° C) |
Withstand voltage (V / min) |
Between coil and contact, between contacts of different polarity: AC2000 50 / 60Hz, Between contacts of same polarity: AC1000 50 / 60Hz |
Operation Ambient Temperature |
-55 to 70 (no freezing or condensation) |
Power Consumption (VA, W) |
About 0.9 |
Maximum Contact Voltage (V) |
AC250、DC125 |
Maximum Switching Frequency (times/h), at Rated Load |
1800 |
Coil iNductance (H) / Steel Chip at Operating |
Reference value: 5.72 (60Hz) |
Failure Rate P Level (Reference Value: at Switching Frequency 120 times/min) |
DC5V 1mA |
Maximum Switching Frequency (times/h), Mechanical |
18000 |
Coil iNductance (H) / Steel Chip at Opening |
Reference value: 3.20 (60Hz) |
Maximum Allowable Voltage (V) |
110% of rated voltage |
Maximum contact current (A) |
5 |
Inductive Load (cosΦ = 0.4, L/R=7ms) |
AC220V 2A、DC24V 2A |
Shape |
MY2-02 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
