| Coil Voltage Rating (V) | DC24 |
| Mass (g) | About 35 g |
| Terminal Shape | Plug-In Terminals |
| CR Circuit | None |
Coil Voltage Rating (V) |
DC24 |
Mass (g) |
About 35 g |
Terminal Shape |
Plug-In Terminals |
CR Circuit |
None |
Operating Temperature Range |
-55~60°C (No Condensation or Freezing) |
Contact Configuration |
2C |
Rated Voltage (V) |
DC24 |
Contact Resistance |
100 mΩ or less (DC5 V 1 A Voltage Drop Method) |
No. of Pole |
2 |
Power Consumption |
About 0.9 |
Insulation Resistance |
1000 mΩ or more (Measure the Same Part as the Withstand Voltage with a DC500 V Insulation Resistance Meter) |
Monotaro ID |
66505513 |
Type of Product |

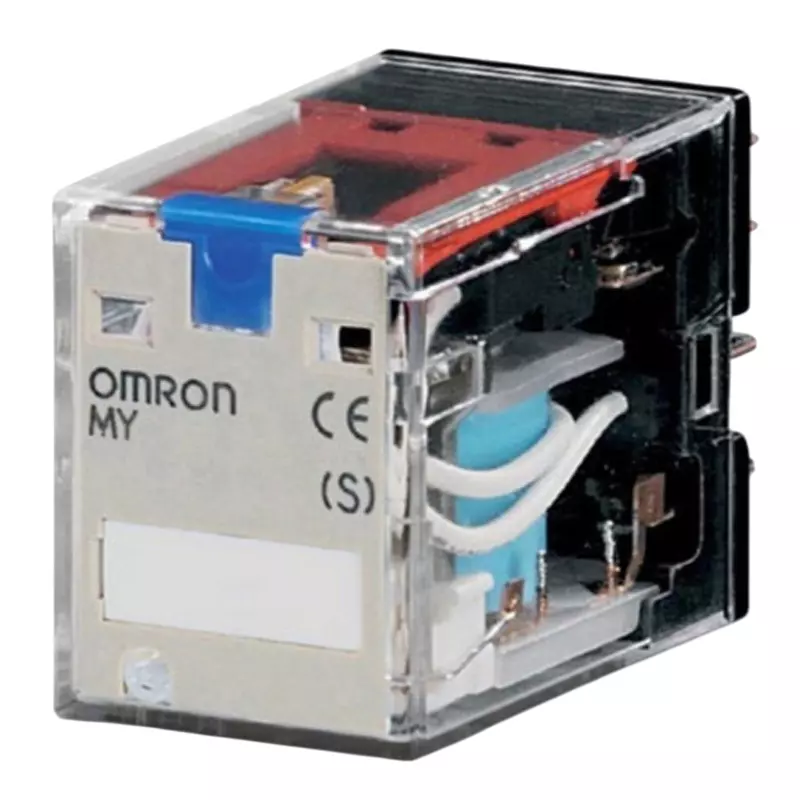

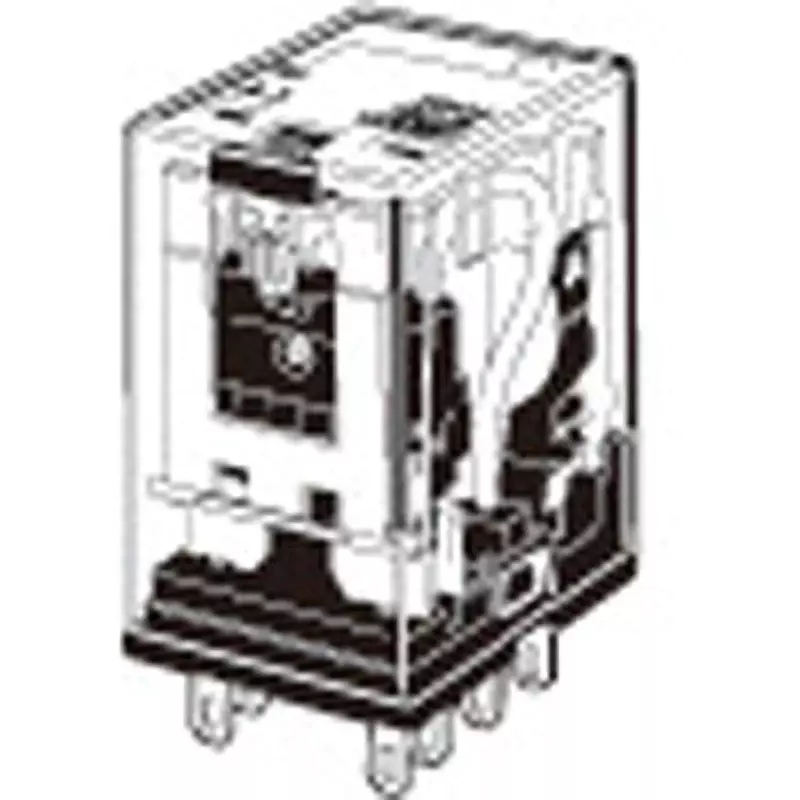

Mini Power Relay |
Model No |
MY2INDC24(S) |
Series |
MY2 Series |
Classification |
Standard Type |
Operation Ambient Temperature |
-55°C to 70°C (No Freezing or Condensation) |
Shape |
MY2IN(S) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Operation Indicator |
LED |
With or Without Diode |
None |
No. Of Pin |
8 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Outer Dimensions (W x D x H) (mm) |
21.5 or less × 42.4 or less × 28 or less |
