Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 85 g |
| Terminal Shape | Plug-In Terminal |
| Operating Temperature Range | -10~40°C (No Condensation or Freezing) |
| Contact Configuration | 2c |
Mass (g) |
About 85 g |
Terminal Shape |
Plug-In Terminal |
Operating Temperature Range |
-10~40°C (No Condensation or Freezing) |
Contact Configuration |
2c |
Rated Voltage (V) |
AC100/110 |
Contact Resistance |
50 mΩ or less (DC5 V 1 A Voltage Drop Method) |
No. of Pole |
2 Pole |
Power Consumption |
About 1.9 to 2.2 (60 Hz) |
Insulation Resistance |
100 mΩ or more (Measured with the DC500 V Insulation Resistance Meter at the Same Location as the Withstand Voltage) |
Withstand Voltage |
Between Coil and Contact, Between Contacts of Different Polarities: AC2000 V/min 50/60 Hz, Between Contacts of the Same Polarity: AC1000 V/min 50/60 Hz |
Monotaro ID |
39087334 |

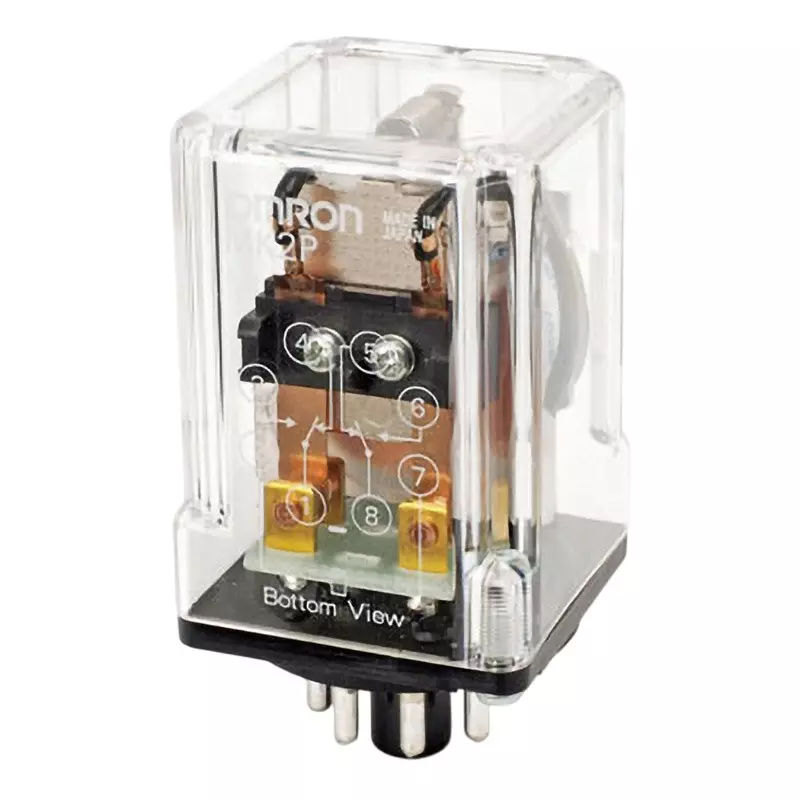

Type of Product |
Small Power Relay |
Model No |
MK2P AC100/110 |
Structure |
Cased Type |
Series |
MK Series |
Classification |
Standard Type |
Operation Ambient Temperature |
-10°C to +40°C (With No Icing or Condensation) |
Shape |
Cased Type |
Protection Class |
In a Case |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
With or Without Diode |
None |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
