| Mass (g) | About 75 g |
| Terminal Shape | Screw Terminal |
| Operating Temperature Range | -25~55°C (No Condensation or Freezing) |
| Contact Configuration | 1ax4 (Standard Type) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Mass (g) |
About 75 g |
Terminal Shape |
Screw Terminal |
Operating Temperature Range |
-25~55°C (No Condensation or Freezing) |
Contact Configuration |
1ax4 (Standard Type) |
Rated Voltage (V) |
DC24 (Per Relay Point) |
Contact Resistance |
100 mΩ or less (5 VDC 1 A Per Relay) |
Insulation Resistance |
1000 mΩ or more (Per Relay Point at 500 VDC) |
Withstand Voltage |
Between Contacts of the Same Polarity: AC1000 V/min 50/60 Hz, Between Contacts of Different Polarities: AC2000 V/min 50/60 Hz, Between Contacts and Coil: AC2000 V/min 50/60 Hz, Between Coils of Different Polarities: AC250 V/min 50/60 Hz, Per Relay |
Monotaro ID |
8588343 |
Type of Product |
Terminal Relay |
Standard |
UL, CSA Certified |

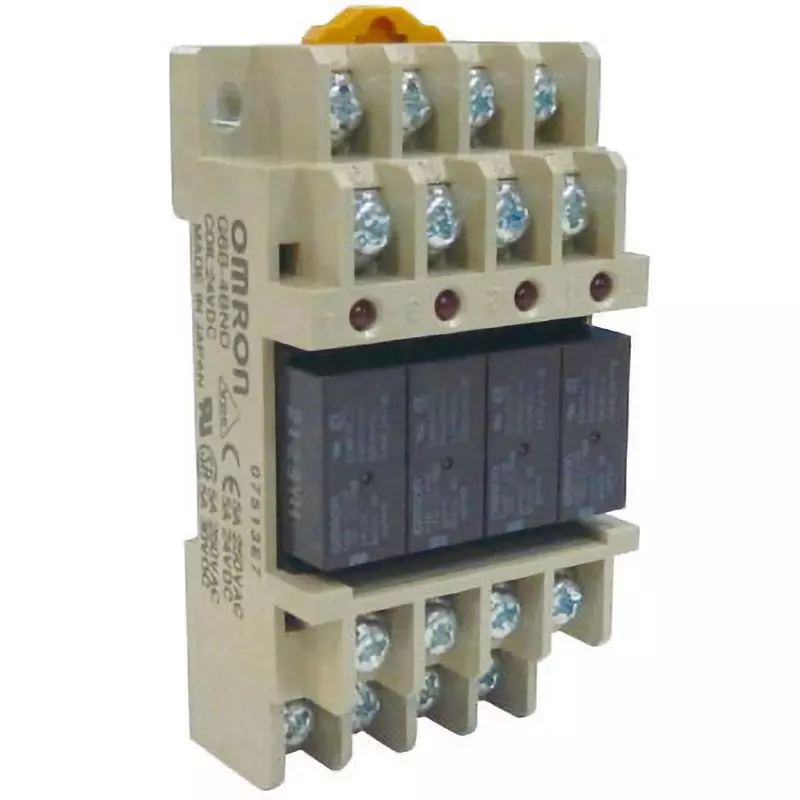

Model No |
G6B-4BND DC24V |
Current Rating |
Resistive Load (COSΦ=1): 5 A, Inductive Load (COSΦ=0.4 L/R=7 ms): 5 A |
Classification |
Standard Type |
Operation Ambient Temperature |
-25°C to +55°C (But Do Not Freeze) |
Terminal Fitting Type |
For Both DIN Rail Mounting and Screw Mounting |
Type of Sign |
Commonly Used for DIN Rail Mounting and Screw Mounting |
Country of Origin |
JAPAN |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Storage Temperature |
-25 to + 55°C (With No Icing) |
