| Mass (g) | About 75 g |
| Terminal Shape | Screw Terminal |
| Return Voltage | 10% or more (per relay) |
| Operating Temperature Range | -25~55°C (No Condensation or Freezing) |
Mass (g) |
About 75 g |
Terminal Shape |
Screw Terminal |
Return Voltage |
10% or more (per relay) |
Operating Temperature Range |
-25~55°C (No Condensation or Freezing) |
Contact Configuration |
1a x 4 (standard form) |
Rated Voltage (V) |
DC24 |
Contact Resistance |
100 mΩ or less (5 VDC 1 A Per Relay) |
Insulation Resistance |
1000 mΩ or more (Per Relay Point at 500 VDC) |
Monotaro ID |
46640097 |
Type of Product |
Terminal Relay |
Standard |
UL, CSA Certified |
Model No |

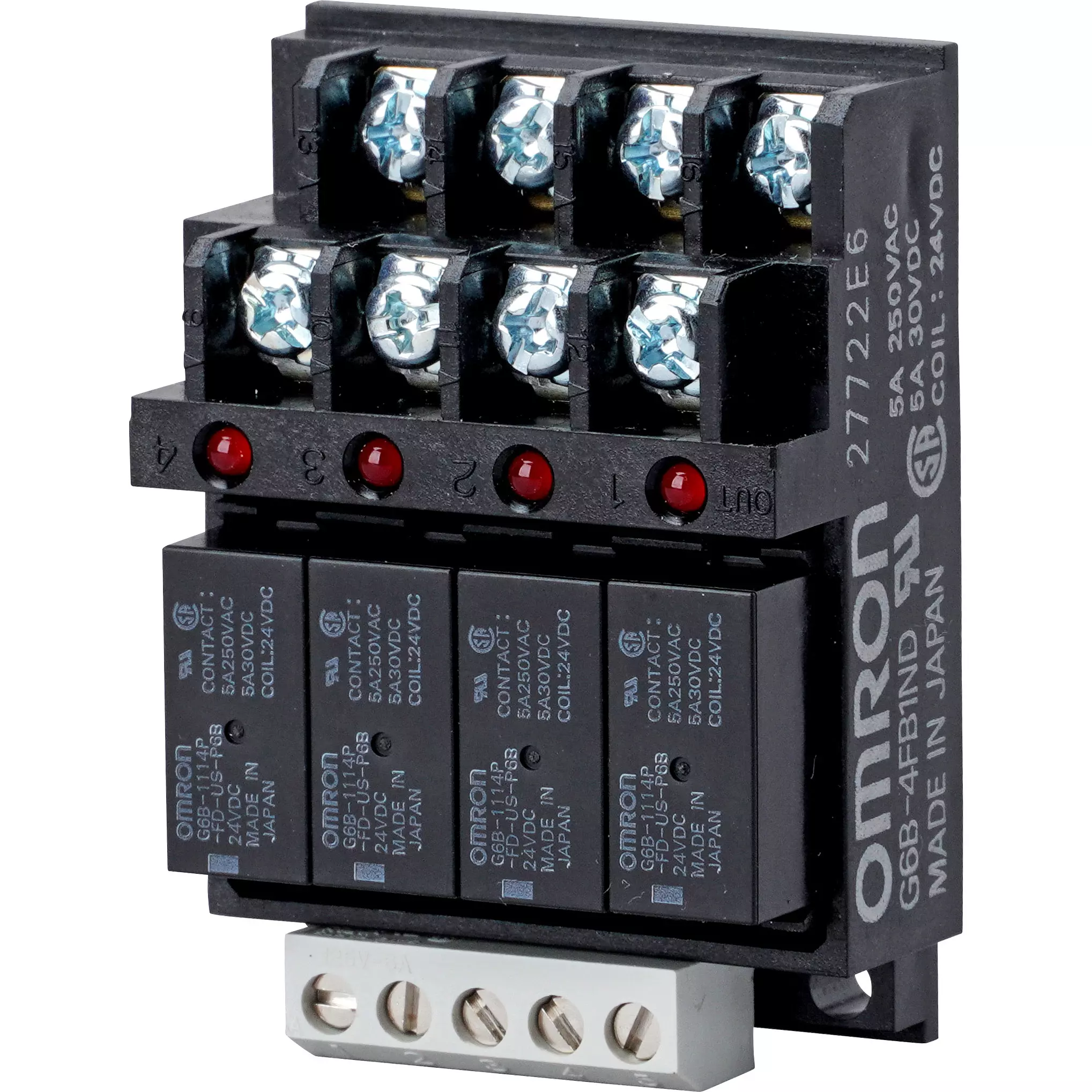

G6B-4FB1ND-DC24 |
Series |
G6B-4 Series |
Classification |
Standard Type |
Operation Ambient Temperature |
-25°C to +55°C (But Do Not Freeze) |
Terminal Fitting Type |
Dedicated Type for PCB Mounting |
Power Consumption (mW) |
Approx. 200 mW (Per Relay) |
Type of Sign |
Specially Designed For Printed Circuit Board Mounting |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 55°C, Single Amplitude 0.75 mm (Double Amplitude 1.5 mm) (Per Relay) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Storage Temperature |
-25 to +65°C (But No Condensation or Freezing) |
