Ships within 25 days
View
View
View
View
| Mass (g) | About 35 |
| Terminal Shape | Plug-in terminal |
| CR Circuit | None |
| Operating Temperature Range | -55 to 60℃ |
Mass (g) |
About 35 |
Terminal Shape |
Plug-in terminal |
CR Circuit |
None |
Operating Temperature Range |
-55 to 60℃ |
Contact Configuration |
2C Contact |
Type |
Mini Power Relay |
No. of Pole |
2-Pole |
Power Consumption |
About 0.9 |
Monotaro ID |
35080306 |
Type of Product |
Mini Power Relay |
Shock Resistance |
1000m/s² |
Classification |
Standard type |
Shape |
MY2N |
Protection Class |
Closed type (cased) |
Coil Voltage |
DC48 V |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |

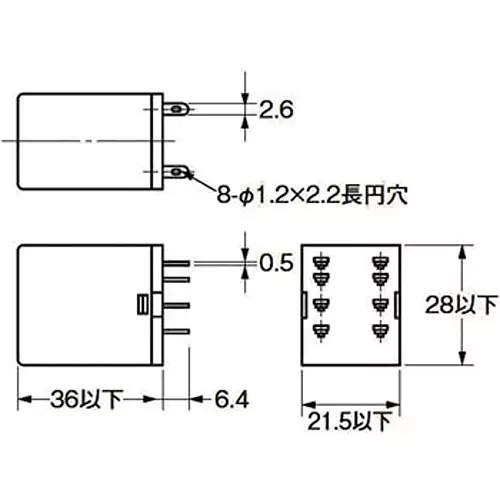

Outer Dimensions |
21.5 x42.4 x28 mm or less |
With or Without Diode |
None |
No. Of Pin |
8 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-55 to 60 (no freezing or condensation) |
Manufacturer Part Number |
MY2N DC48 |
Contact Resistance (ohm) |
50 or less (DC5V 1A voltage drop method) |
Insulation Resistance (MOhm) |
100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage) |
Operation Indicator Lamp |
Compliant |
