Ships within 19 days
Model No
View
View
View
View
| Coil Voltage Rating (V) | DC48 |
| Mass (g) | About 35 g |
| Terminal Shape | Plug-In Terminals |
| CR Circuit | None |
Coil Voltage Rating (V) |
DC48 |
Mass (g) |
About 35 g |
Terminal Shape |
Plug-In Terminals |
CR Circuit |
None |
Operating Temperature Range |
-55~70°C (No Condensation or Freezing) |
Contact Configuration |
2C |
Rated Voltage (V) |
DC48 |
No. of Pole |
2 |
Connection Type |
Standard Type |
Power Consumption |
About 0.9 |
Insulation Resistance |
100 mΩ or more (Measured with the DC500 V Insulation Resistance Meter at the Same Location as the Withstand Voltage) |
Withstand Voltage |
Between Coil and Contact, Between Contacts of Different Polarities: AC2000 V/min 50/60 Hz, Between Contacts of the Same Polarity: AC1000 V/min 50/60 Hz |
Monotaro ID |
35080315 |
Type of Product |

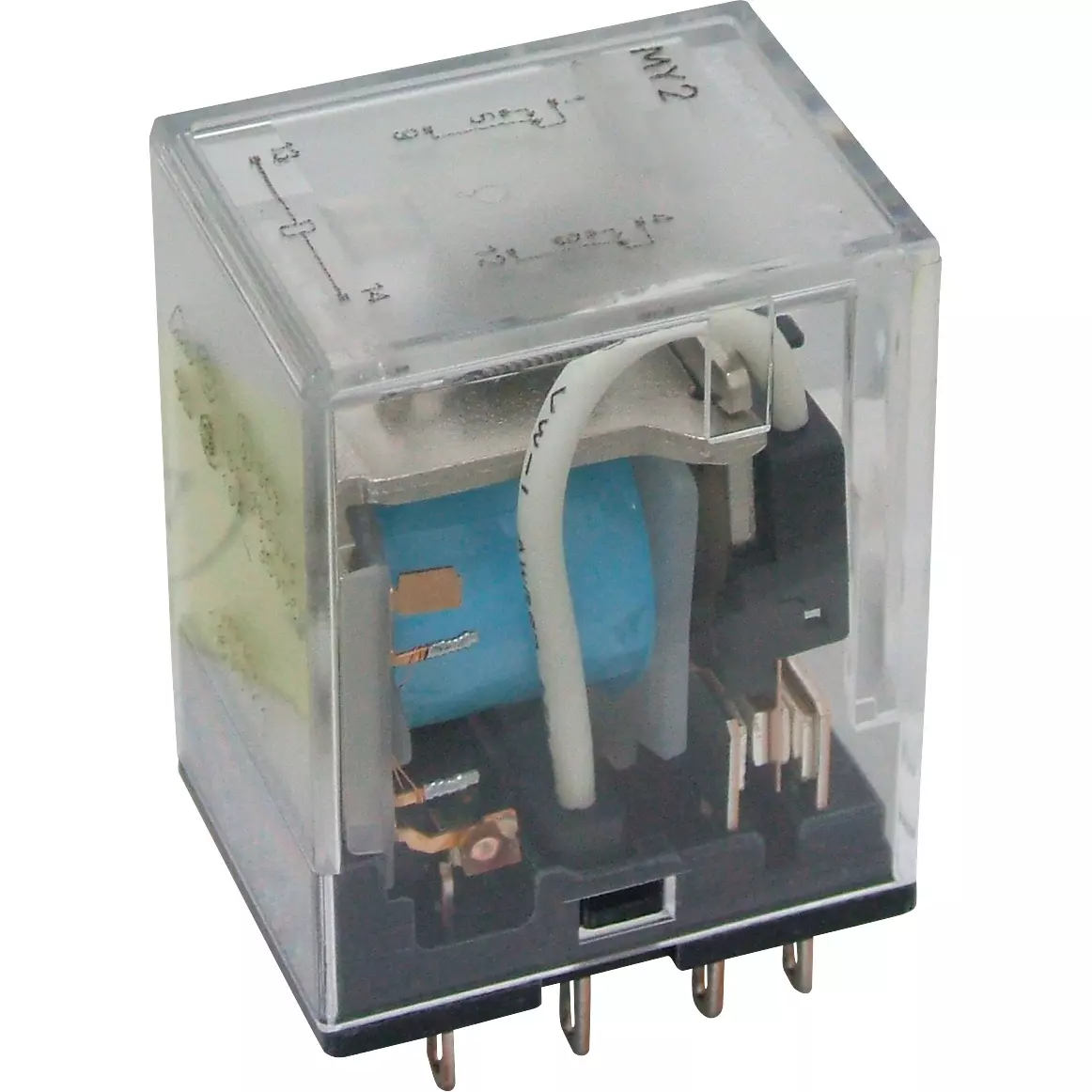

Mini Power Relay |
Model No |
MY2-D DC48 |
Series |
MY2 Series |
Maximum contact current (A) |
5 A |
Shape |
MY2-D |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
With or Without Diode |
Included |
Name of Manufacturer/Packer/Importer |
Omron Corporation |

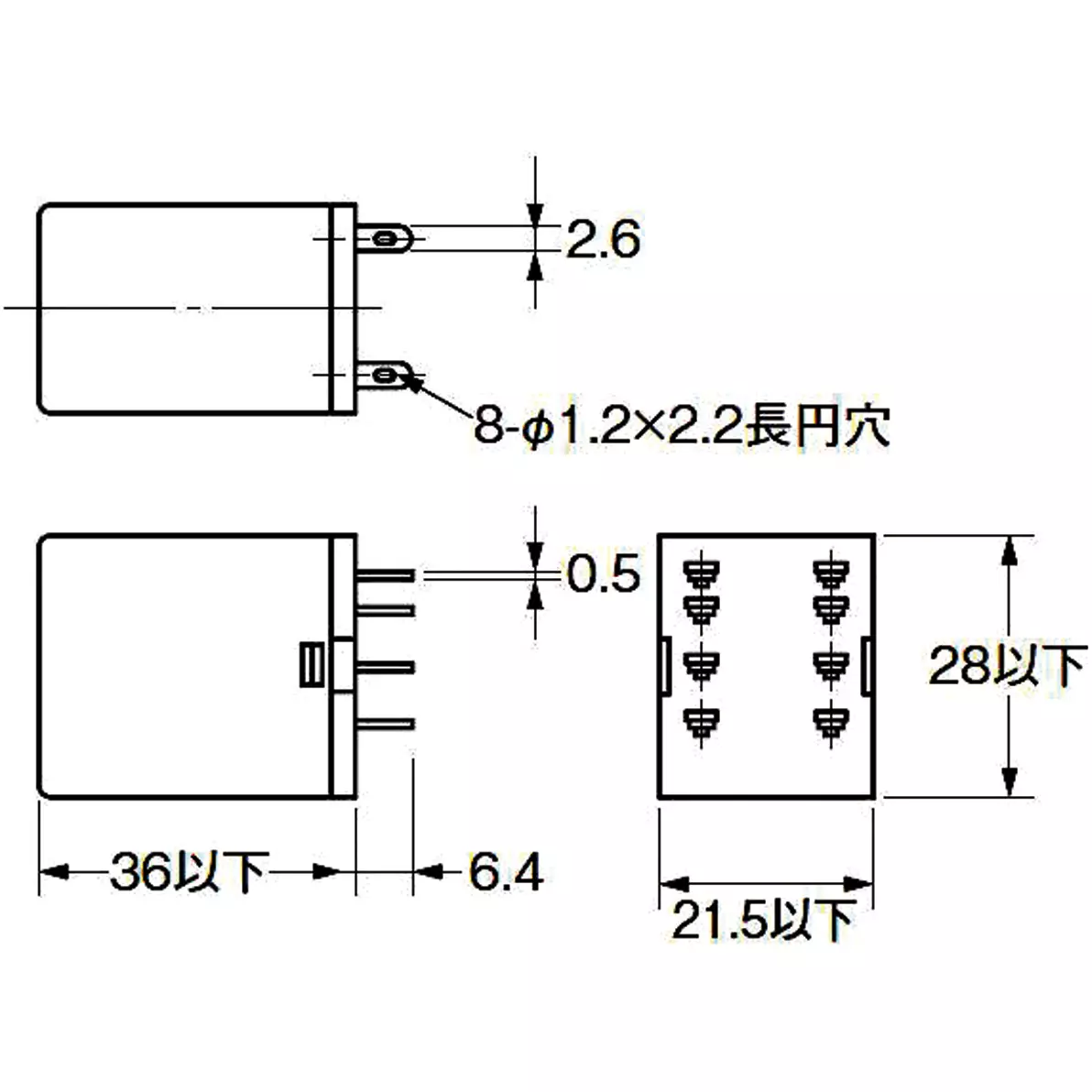

Outer Dimensions (W x D x H) (mm) |
21.5 or less × 42.4 or less × 28 or less |
