| Mass (g) | About 17 |
| Terminal Shape | Printed circuit board terminal |
| Return Voltage | 15% or more of the rated voltage |
| Contact Configuration | 1c |
Mass (g) |
About 17 |
Terminal Shape |
Printed circuit board terminal |
Return Voltage |
15% or more of the rated voltage |
Contact Configuration |
1c |
Mechanical Durability |
20 million times or more (opening/closing frequency 18,000 times/h) |
Type |
Power Relay |
Coil Resistance |
1100 |
Contact Resistance |
30 or less |
Insulation Resistance |
1000 mΩ or more (Measure the same part as the withstand voltage with a DC500V insulation resistance meter) |
Coil Inductance (H), at Armature Open |
Reference value: 8.55 |
Monotaro ID |
47826617 |
Operating Voltage |
70% or less of rated voltage |
Type of Product |
Power Relay |
Model No |

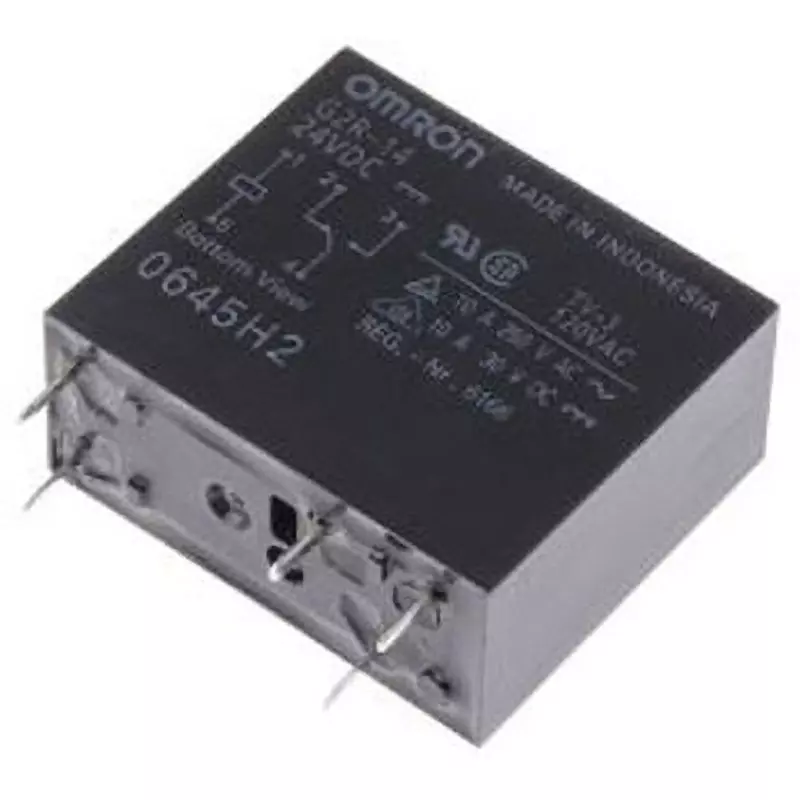

G2R-14 24DC |
Classification |
Standard type |
Rated Current (mA) |
21.8 |
Electrical Durability |
100,000 times or more (rated load opening / closing frequency 1800 times / h) |
Operation Ambient Temperature |
-40~+70 (no freezing or condensation) |
Maximum Switching Frequency (times/h), Mechanical |
18000 |
Protection Class |
Flux resistant type (T + type is closed type) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Outer Dimensions, Length L x Width W x Height H (mm) |
29 × 13 × 25.5 |
Ambient Humidity (% RH) |
5~85 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Maximum Permissible Voltage (V) |
170% of rated voltage (at 23 ° C) |
