Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 70 g |
| Terminal Shape | Plug-in Terminals |
| CR Circuit | None |
| Operating Temperature Range | -25~40°C (No Condensation or Freezing) [-25~55°C When Current is 4A or less] |
Mass (g) |
About 70 g |
Terminal Shape |
Plug-in Terminals |
CR Circuit |
None |
Operating Temperature Range |
-25~40°C (No Condensation or Freezing) [-25~55°C When Current is 4A or less] |
Contact Configuration |
4C |
Rated Voltage (V) |
DC48 |
No. of Pole |
4 Pole |
Connection Type |
Standard Type |
Power Consumption |
About 1.5 |
Withstand Voltage |
Between Coil and Contact, Between Contacts of Different Polarities: AC2000 V/min 50/60 Hz, Between Contacts of the Same Polarity: AC1000 V/min 50/60 Hz |
Monotaro ID |
35080823 |

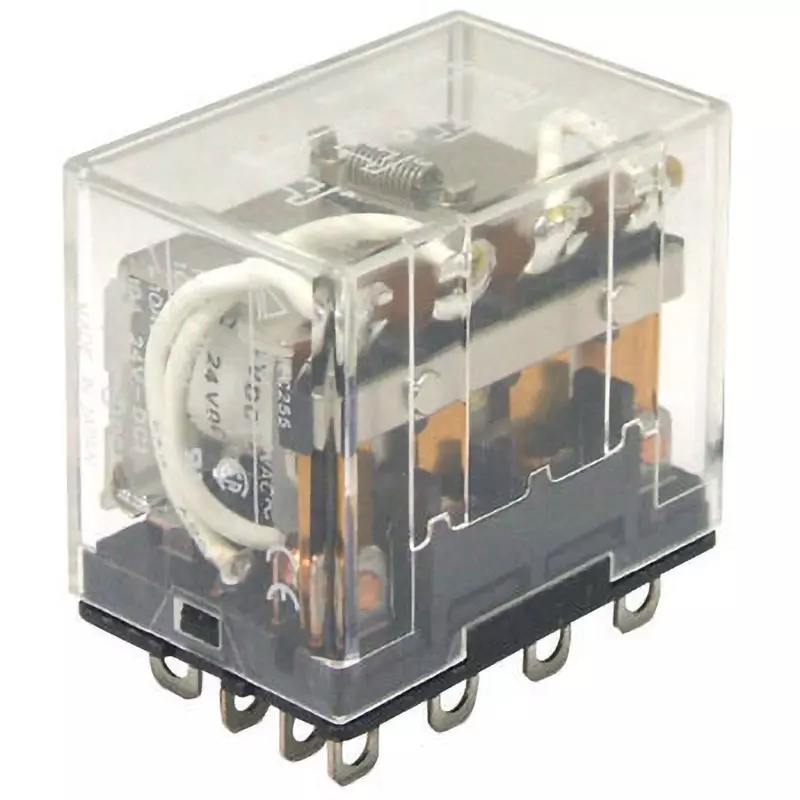

Type of Product |
Bi-Power Relay |
Model No |
LY4N DC48 |
Current Rating |
10 A |
Classification |
Standard Type |
Maximum contact current (A) |
Resistive Load: 10 A, Inductive Load: 10 A |
Shape |
LY4N |
Protection Class |
In a Case |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
With or Without Diode |
None |
Name of Manufacturer/Packer/Importer |
Omron Corporation |

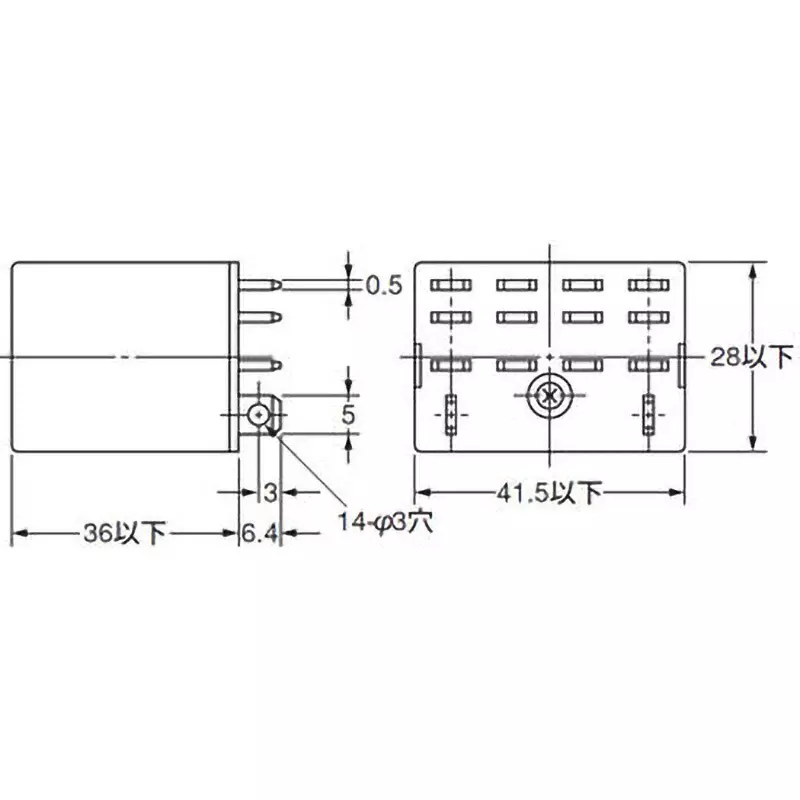

Outer Dimensions (W x D x H) (mm) |
41.5 or less × 42.4 or less × 28 or less |
