Ships within 19 days
Model No
View
View
View
View
| Mass (g) | About 90 g |
| Terminal Shape | Tab Terminal # 250 |
| Return Voltage | 18 V or higher |
| Operating Temperature Range | -25~60°C (No Condensation or Freezing) |
Mass (g) |
About 90 g |
Terminal Shape |
Tab Terminal # 250 |
Return Voltage |
18 V or higher |
Operating Temperature Range |
-25~60°C (No Condensation or Freezing) |
Contact Configuration |
A Contact Point |
Rated Voltage (V) |
AC100/120 |
Contact Resistance |
50 mΩ or less (DC5 V 1 A Voltage Drop Method) |
No. of Pole |
2 Pole |
Power Consumption |
About 1.7 to 2.5 |
Insulation Resistance |
100 mΩ or more (Measured with the DC500 V Insulation Resistance Meter at the Same Location as the Withstand Voltage) |
Monotaro ID |
46644516 |
Type of Product |
Power Relay |
Model No |

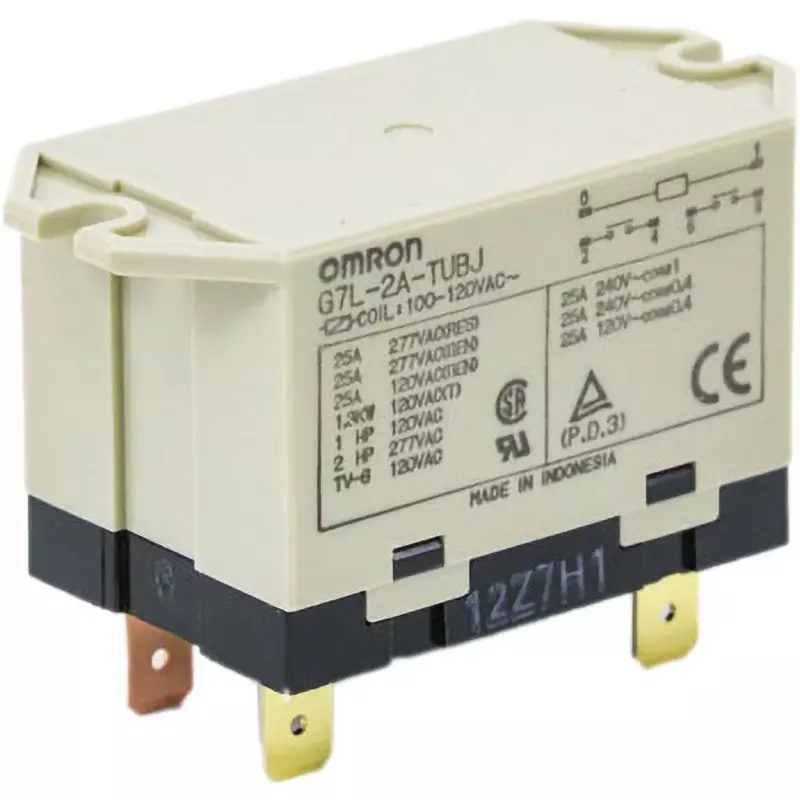

G7L-2A-TUBJ-AC100/120 |
Series |
G7L |
Operation Ambient Temperature |
-25°C to +60°C (With No Icing or Condensation) |
Protection Class |
In a Case |
Type of Sign |
Upper Bracket Installation |
Country of Origin |
Indonesia |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 55°C to 10 Hz, Single Amplitude 0.75 mm (Double Amplitude 1.5 mm) |
Terminal Structure |
Tab Terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Installation Method |
Upper Bracket Mounting |
