| Connection Size | 12.7 mm BSP (M) |
| Country of Origin | India |
| Display Type | Analog |
| Case Material | Stainless Steel |
Connection Size |
12.7 mm BSP (M) |
Country of Origin |
India |
Display Type |
Analog |
Case Material |
Stainless Steel |
Mounting Type |
Direct Mounting & Bottom Entry |
Material |
Stainless Steel |
Pressure Range |
-1 to 1.06 Kg/cm² ( Dual Scale: -760 mmhg to 15 PSI ) |
Series |
JIPL-IPG |
Type of Product |

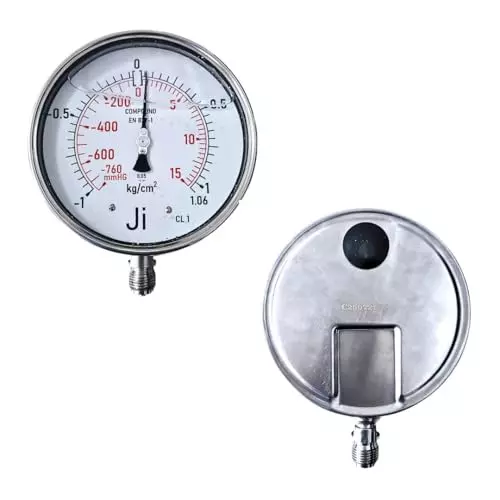

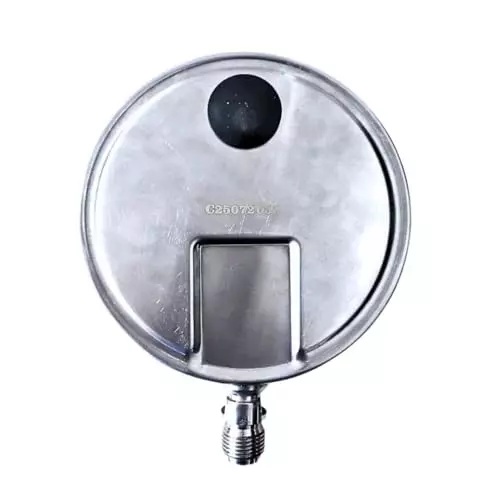

Industrial Glycerin Filled Compound Gauge |
Weight |
1.5 Kg |
Accuracy |
±1% Full Scale Deflection |
Dial Size |
150 mm |
Dial Size (Inch) |
6 Inch |
Dimension |
18x18x10 cm |
Model No |
JIPL-IPG-150MM-B2 |
Case Type |
Crimping Type |
Liquid Filling |
Glycerin Filled |
Usage/Application |
Industrial Use |
Name of Manufacturer/Packer/Importer |
Japsin Instrumentation Private Limited |
Connection Size (Inch) |
1/2 Inch BSP (M) |
Wetted parts |
Stainless Steel 316L |
Product Code |
JIPL-IPG-150MM-B2 |
