Ships within 2 days
Pressure Range
View
View
View
View
| Connection Size | 6.35 mm NPT (M) |
| Country of Origin | India |
| Display Type | Analog |
| Case Material | Stainless Steel |
Connection Size |
6.35 mm NPT (M) |
Country of Origin |
India |
Display Type |
Analog |
Case Material |
Stainless Steel |
Mounting Type |
Direct Mounting & Bottom Entry |
Material |
Stainless Steel |
Pressure Range |
0 to 10 Bar (Dual Scale: 1 MPa) |
Series |
JIPL-IPG |
Type of Product |
Industrial Pressure Gauge |
Weight |
219 g |
Accuracy |
±1% Full Scale Deflection |
Dial Size |
63 mm |
Dial Size (Inch) |
2 1/2 Inch |
Dimension |
10x10x10 cm |
Model No |
JIPL-IPG-63MM-B8 |
Case Type |
Bayonet Type |
Liquid Filling |
Glycerin Filled |
Usage/Application |
Industrial Use |
Title |

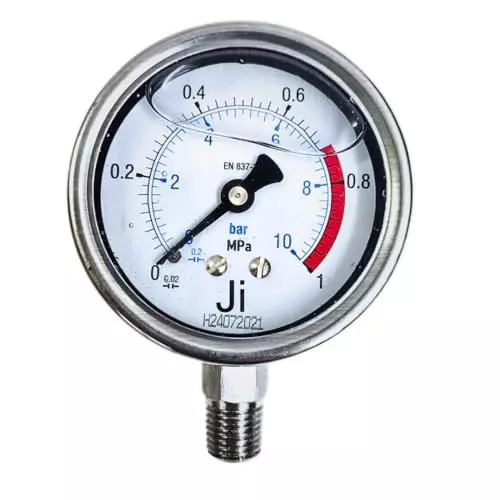

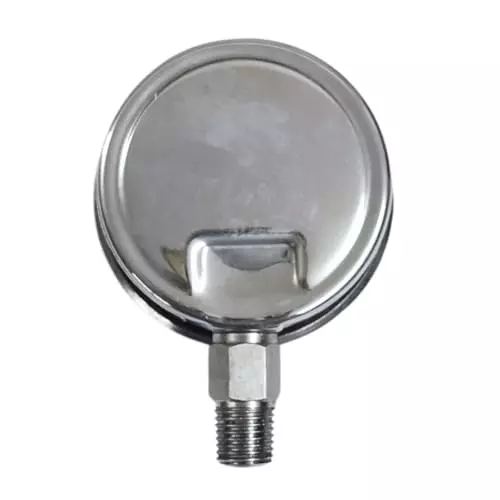

Japsin Instrumentation Industrial Pressure Gauge Analog Display 0 to 10 Bar Range 63 mm Dial Size for Industrial Use |
Name of Manufacturer/Packer/Importer |
Japsin Instrumentation Private Limited |
Connection Size (Inch) |
1/4 Inch NPT (M) |
Wetted parts |
Stainless Steel 316L |
Product Code |
JIPL-IPG-63MM-B8 |
