| Operating Temperature Range | -10 to 50 ℃(no freezing or condensation) |
| Country of Origin | Japan |
| Display Type | 4-digit LED digital |
| Case Material | Front case: PC/ABS (UL94V-0), rear case: ADC12 |
Operating Temperature Range |
-10 to 50 ℃(no freezing or condensation) |
Country of Origin |
Japan |
Display Type |
4-digit LED digital |
Case Material |
Front case: PC/ABS (UL94V-0), rear case: ADC12 |
Power Supply |
12 to 24V DC ±10%, ripple voltage 10% (PP) or less |
Type of Product |

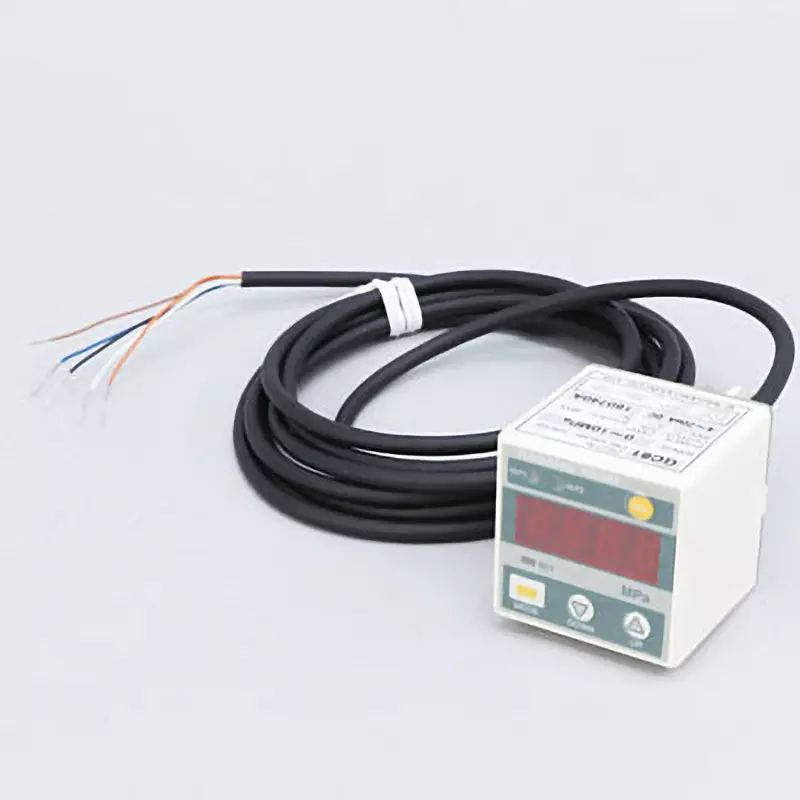

Digital Pressure Gauge |
Accuracy |
±(1% F.S.+1digit)at 23℃ |
Model No |
GC61-374-47N300 0-20MPa |
Measurable Fluid |
Air, water, oil (gas / liquid that does not corrode connections) |
Monotaro ID |
8432488 |
Import Country |
Direct Import from Japan |
Function |
Scaling: Display value, analog output / Loop check: Comparator output, analog output / Filter: None, 25ms, 250ms, 2.5s, 5s, 10s (time constant) The set value is reflected in the comparator output and analog output. / Error display: Overpressure, comparator overcurrent, out-of-range pressure during zero adjustment / Hold: Peak value, bottom value display / Other: One-touch zero adjustment, key lock |
Name of Manufacturer/Packer/Importer |
Nagano Keiki Co., Ltd. |
Maximum Operating Pressure |
Twice the pressure range |
Connector Thread |
R1/4 |
Pressure Range (MPa) |
0 to 20 |
Specifications |
● Maximum allowable pressure: 2 times the pressure range |
Mass (g) |
Approx. 155 (including 2m cable) |
Case Structure |
IP65 (with atmospheric intake port) |
Display Unit |
Mpa |
Operation Environment |
Places where there is no flammable gas or liquid that may cause ignition or explosion under normal conditions |
Storage Temperature Range |
-20 to 60℃ (no freezing or condensation) |
Display Cycle |
200ms |
Response Speed |
Output: 5 ms or less |
Operation Indicator Lamp |
Red LED (lit when ON) |
Cable Length (m) |
2 |
Fitting Material |
SUS316 |
Temperature coefficient |
±0.1%FS/℃ (both zero point and span) |
Operating Humidity Range |
35 to 85 % RH (no condensation) |
Current Consumption (mA) |
30 DC or less |
Diaphragm Material |
SUS630(17-4PH) |
Character Height (mm) |
8 |
Comparative Output |
NPN open collector x 2 outputs (output capacity 30V DC 80mA DC max.) / Dead band: Hysteresis mode: Variable, Window comparator mode: 1% FS fixed |
Analog Output |
No output |
Display Update Cycle |
200ms |
Protection Circuit |
Reverse power connection, comparator overcurrent protection |
Type of Sign |
Horizontal mounting |
Conductor Cross Section Area |
0.18 mm² (cable) |
