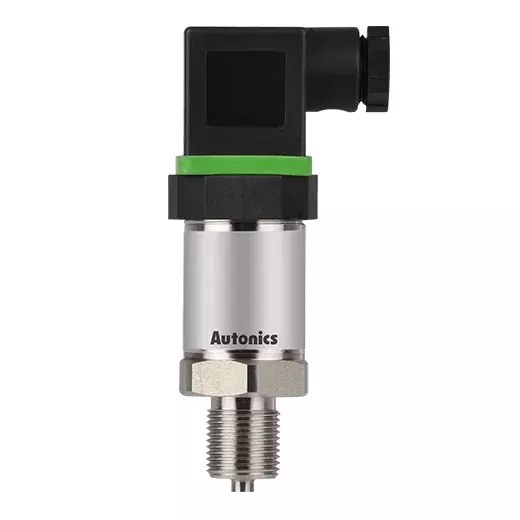

| Type of Product | Pressure Transmitter |
| Pressure Range | 0 to 10kgf/cm² |
| Model No | TPS20-G26F8-00 |
| Material | Sealing, diaphragm, connection: stainless steel type 316, O-ring: fluoro rubber |
Type of Product |
Pressure Transmitter |
Pressure Range |
0 to 10kgf/cm² |
Model No |
TPS20-G26F8-00 |
Material |
Sealing, diaphragm, connection: stainless steel type 316, O-ring: fluoro rubber |
Weight |
Approx. 350g (approx. 320g) (based on head type) |
Hysteresis |
±0.3% F.S. |
Country of Origin |
South Korea |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Pressure Port |
R3/8(PF) |
Environment Ambient Temperature |
-10 to 70℃, Storage: -10 to 70℃ |
Measurement Pressure |
Gauge pressure |
Measured Material |
Liquid, gas, oil (except corrosive environment of stainless steel type 316) |
Linearity |
±0.3％ F.S. (-10 to 50℃), ±0.5％F.S. (50 to 70℃) |
Power Voltage |
15-35VDC |
Environment Ambient Humidity |
5 to 95% RH, Storage: 5 to 95% RH |
Connector |
DIN connector type |
