Ships within 19 days
Model No
View
View
View
View

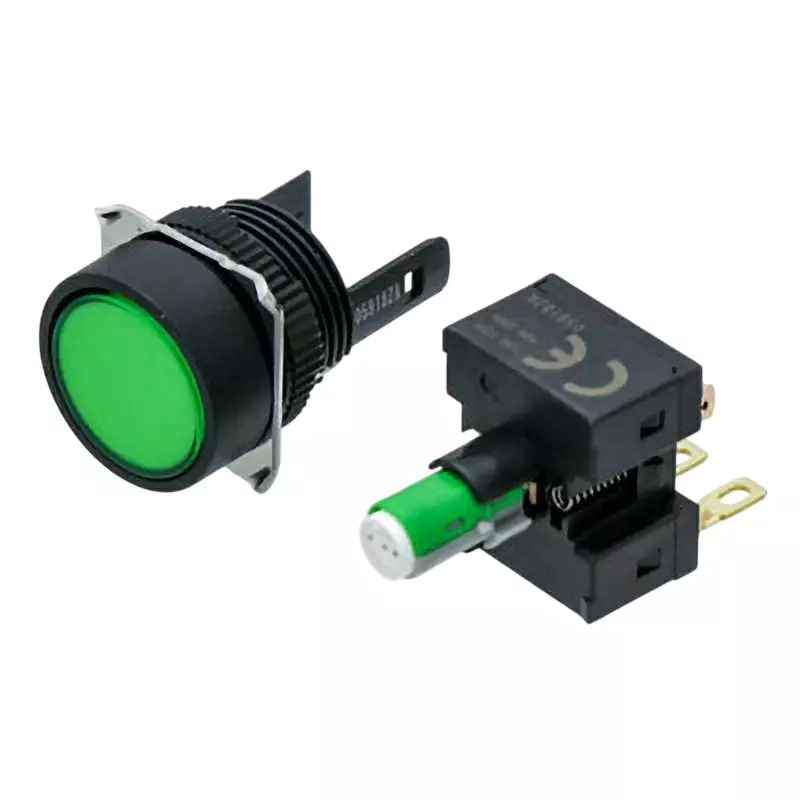

| Model No | A16L-TGM-5D-1 |
| Type of Product | Push Button Switch (Round) (Led) (Round Body Φ16) |
| Insulation Resistance | 100 mΩ or more (with DC500 V Mega) |
| Protection Class | IP40 |
Model No |
A16L-TGM-5D-1 |
Type of Product |
Push Button Switch (Round) (Led) (Round Body Φ16) |
Insulation Resistance |
100 mΩ or more (with DC500 V Mega) |
Protection Class |
IP40 |
Type |
Illumination |
Withstand Voltage |
Between Homopolar Terminals, Between Lamp Terminals: 1000 VAC/min 50/60 Hz | Between Different Polarity Terminals, Between Each Terminal and Ground: 2000 VAC/min 50/60 Hz |
Monotaro ID |
38987505 |
Storage Temperature |
-25 to +65 (with No Icing or Condensation) |
Terminal Shape |
Solder Terminal |
Button Shape |
Round (Protruding) |
Contact Configuration |
1C |
Operation Type |
Momentary |
Light Source |
LED |
Applicable Voltage (V) |
AC/DC5 V |
Country of Origin |
Japan |
Type of Illumination |
LED Illumination |
Import Country |
Direct Import from Japan |
Lamp Voltage (V) |
AC/DC5 V |
Mounting Hole Diameter |
Φ16 mm |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
