Ships within 19 days
Model No
View
View
View
View

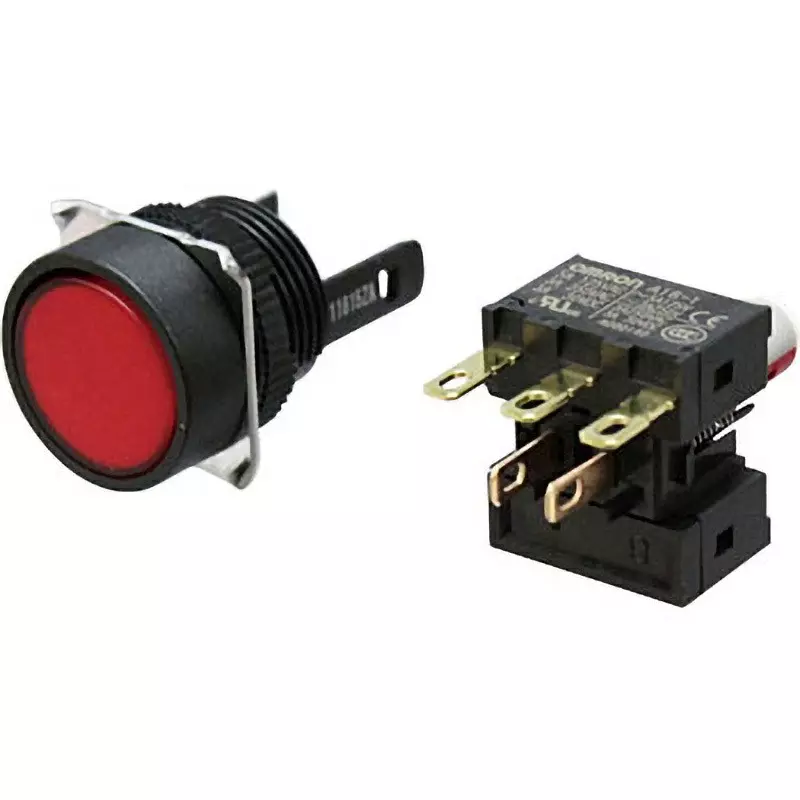

| Model No | A16L-TRM-24D-1 |
| Type of Product | Push Button Switch (Round) (Led) (Round Body Φ16) |
| Protection Class | IP40 |
| Type | Pushbutton switch (separate type) |
Model No |
A16L-TRM-24D-1 |
Type of Product |
Push Button Switch (Round) (Led) (Round Body Φ16) |
Protection Class |
IP40 |
Type |
Pushbutton switch (separate type) |
Shock Resistance |
500m/s² |
Withstand Voltage |
Between homopolar terminals, between lamp terminals: 1000 VAC 50/60 Hz for 1 min / between different polarity terminals, between each terminal and ground: 2000 VAC 50/60 Hz for 1 min |
Ambient Humidity to Use |
35 to 85%RH |
Monotaro ID |
38988241 |
Storage Temperature |
-25 to 65℃ |
Contact Configuration |
1C |
Operation Type |
Momentary |
Light Source |
LED |
Applicable Voltage (V) |
AC/DC24±5% (LED lamp) |
Country of Origin |
Japan |
Rated Voltage (V) |
AC/DC24 (LED lamp) |
Terminal Type |
Solder terminal |
Type of Illumination |
Illumination |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-10 to 55 (no freezing or condensation) |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Contact Resistance (ohm) |
100 or less (initial value) |
