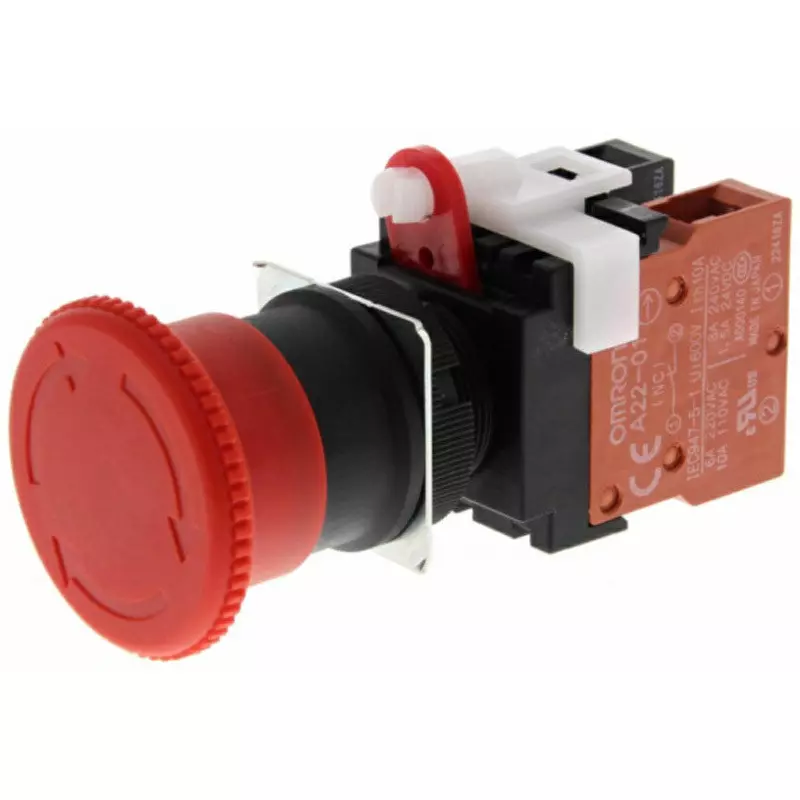

| Model No | A22E-M-01 |
| Type of Product | Pushbutton Switch for Emergency Stop |
| Protection Class | IP65 oil resistant type (from front of panel) |
| Type | Switch alone |
Model No |
A22E-M-01 |
Type of Product |
Pushbutton Switch for Emergency Stop |
Protection Class |
IP65 oil resistant type (from front of panel) |
Type |
Switch alone |
Operating Temperature Range |
-20 to +70℃ |
Shock Resistance |
1000m/s² |
Withstand Voltage |
Between homopolar terminals, between each terminal and ground: 2500 VAC 50/60 Hz for 1 min. |
Ambient Humidity to Use |
35 to 85%RH |
Monotaro ID |
38992755 |
Storage Temperature |
-40 to 70℃ |
Contact Configuration |
1NC(1) |
Mounting Hole Diameter (Φmm) |
22/25 |
Country of Origin |
Japan |
Terminal Type |
Screw terminal (M3.5) |
Type of Illumination |
Non-illuminated |
Import Country |
Direct Import from Japan |
Vibration Resistance (Malfunction) |
10 to 55 Hz, 1.5 mm double amplitude (within 1 ms) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-20 to 70 (no freezing or condensation) |
Insulation Resistance (MOhm) |
100 or more (with DC500V mega) |
Contact Resistance (ohm) |
100 or less (initial value) |
Stroke (mm) |
Minimum direct opening stroke: 11 |
Safety Standard |
UL, cUL (File No. E41515)/TUV (EN60947-5-1) (Low Voltage Directive)/CCC (GB14048.5) |
